2-13

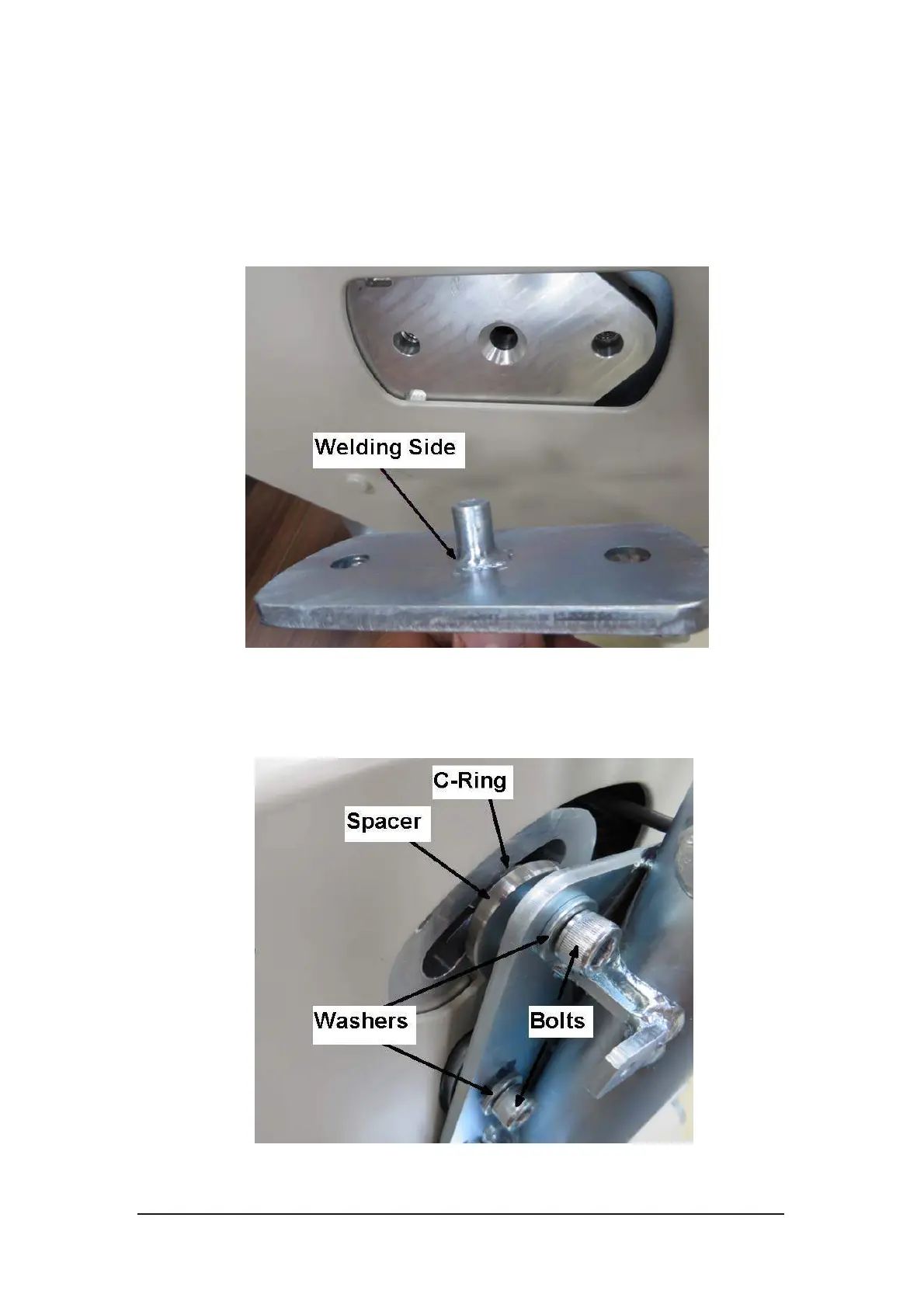

2.9.3. Assemble Footrest

Install the central spacer plate with the welding side toward the

carriage.Assemble the footrest and spacer ring. Make sure the C-ring is not

caught between the spacer ring and carriage side plate. Adjust the level and

tighten with bolts and washers.

Figure 2-19 Central spacer plate

Figure 2-20 Footrest installation
