Merits Pilot - Troubleshooting; Troubleshooting Flowchart; Figure 6-1 Troubleshooting Chart When Stairlift Wont Run

66 pages

Save Page as PDF

To Next Page

To Previous Page

6-1

6. Troubleshooting

6.1. Troubleshooting Flowchart

Refer to the following flowchart to troubleshoot and correct any faults when stair

won’t run.

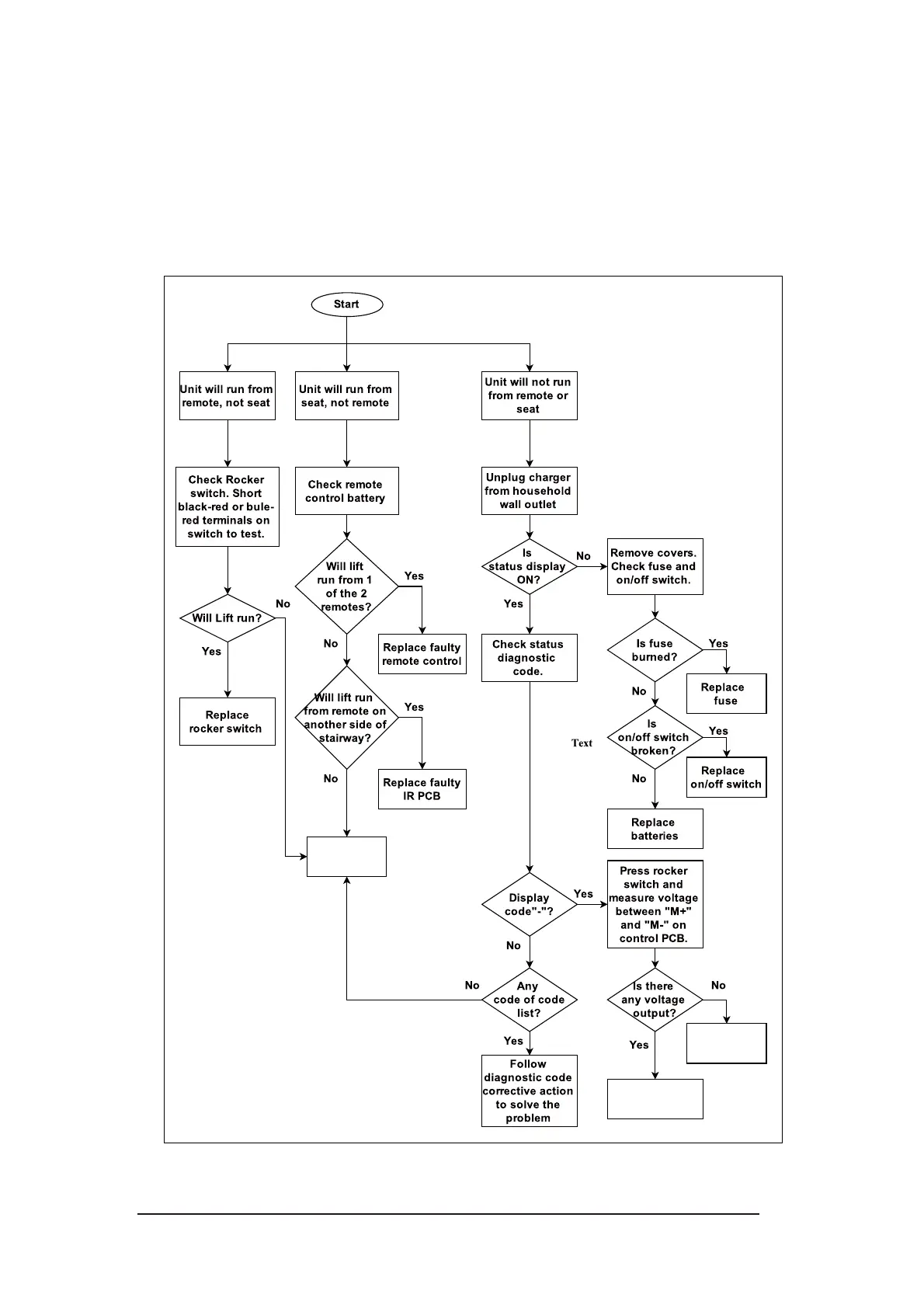

Figure 6-1Troubleshooting chart when stairlift won’t run
