4-7

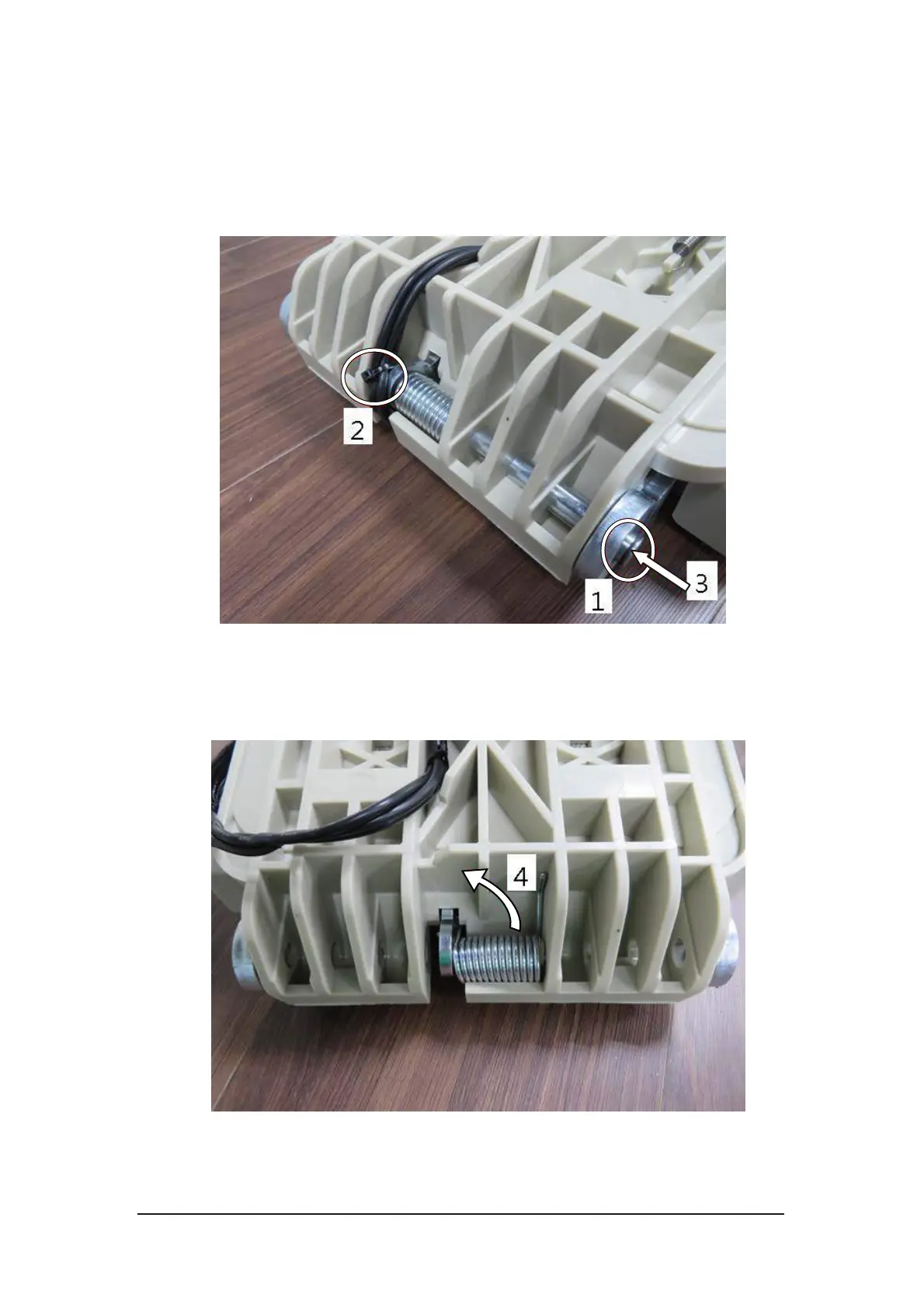

4.3.5. Footrest Parts Removal

i. Remove C-ring on the shaft.

ii. Cut off the cable tie.

iii. Push the shaft out to separate the parts.

Figure 4-11 Footrest parts removal

iv. Rotate the spring to remove it from the assembly..

Figure 4-12 Torsion spring removal
