4-12

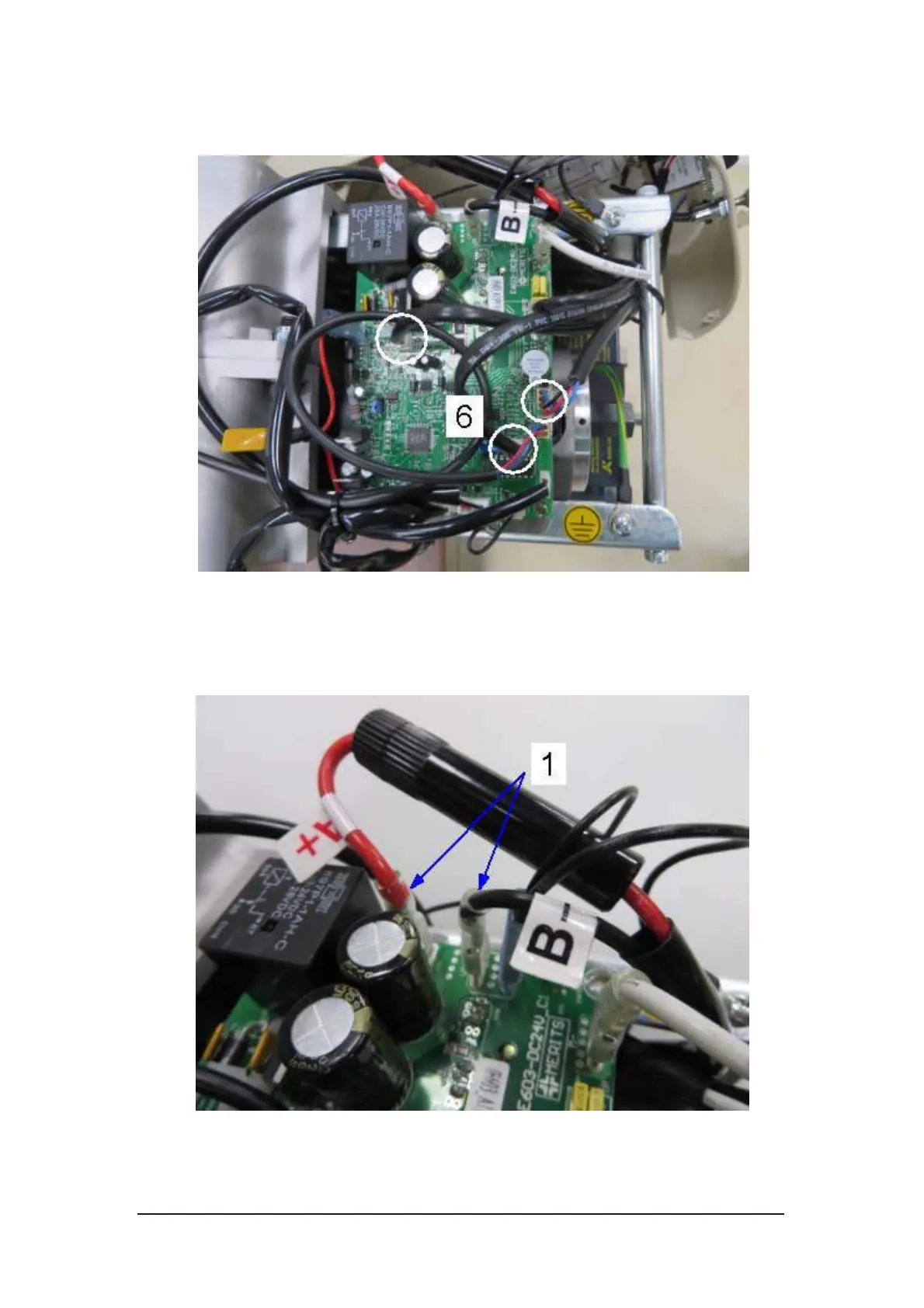

vi. Disconnect the cables from the control PCB. Remove the right side cover.

Figure 4-21 Disconnect cables

4.4.1. Batteries Replacement

i. Disconnect the terminals of battery cable.

Figure 4-22 Disconnect battery cable
