iii. Put the footrest safety cover on the footplate. Push the footrest safety

cover to the left against the footplate.

iv. Push the footrest safety cover down to lock it.

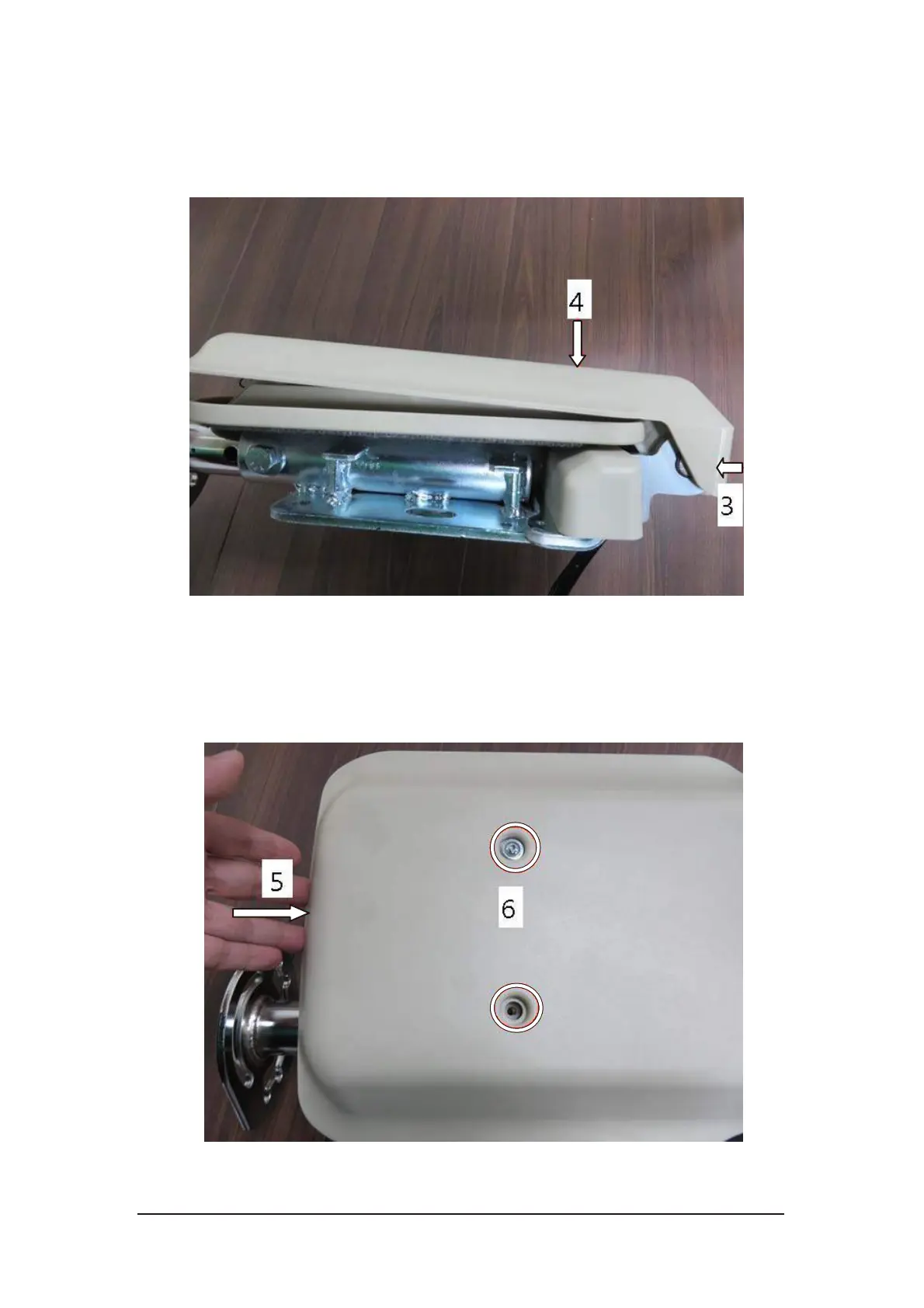

Figure 4-15 Footrest parts removal

v. Push the footrest safety cover to the right to align with the nuts.

vi. Tighten washers and screws. Ensure that the footrest safety cover can

move freely on the footplate.

Figure 4-16 Tighten footrest safety cover screws
