3-2

3.2.3. Armrest Safety Switch

Press the rocker switch on the armrest. Lift the armrest at the downstairs side.

The stairlift should stop if the armrest was lifted. The status display indicates .

Check the switch inside the armrest if there is any problem.Refer to Figure 2-25

for correct wiring.

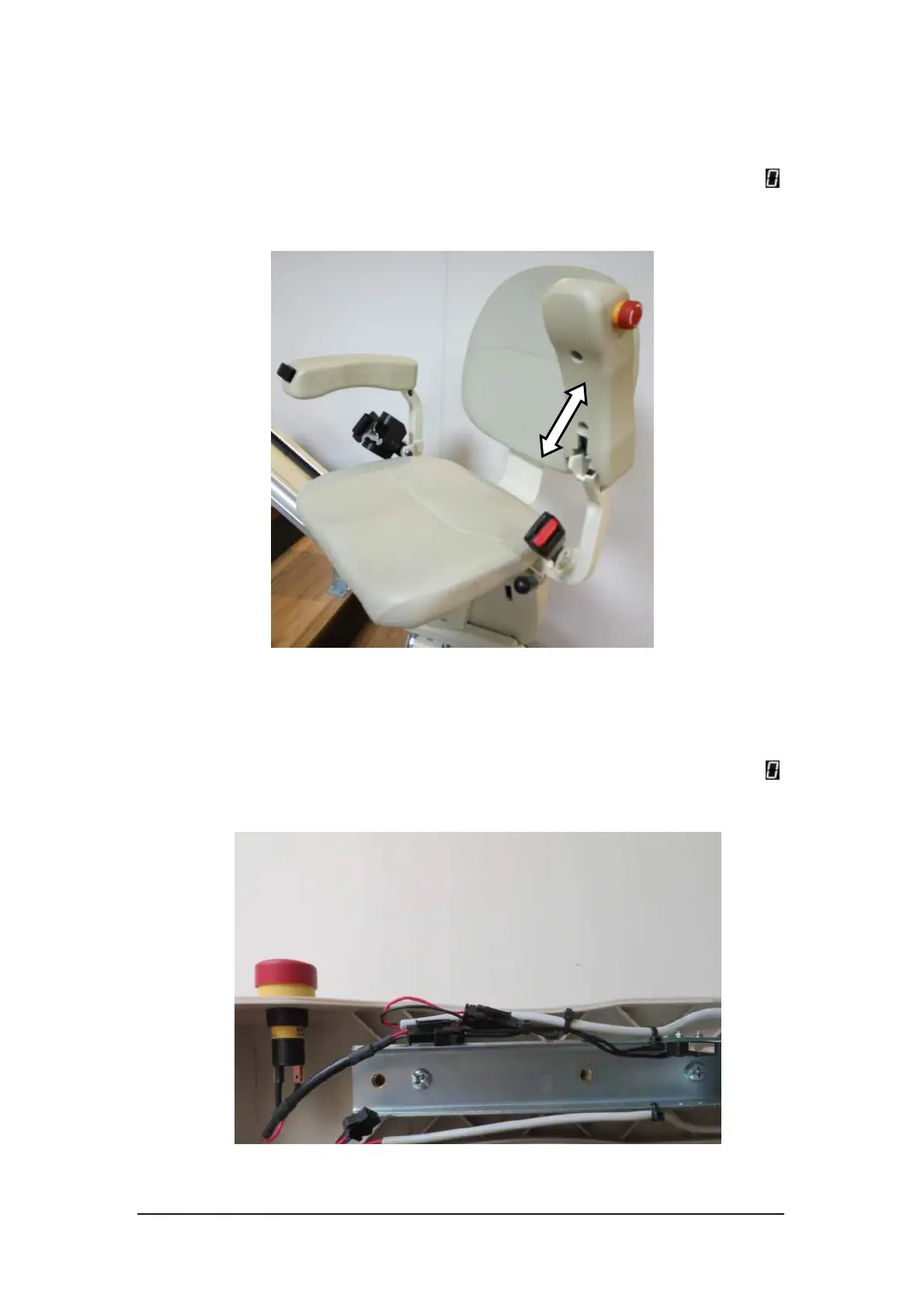

Figure 3-2 Armrest safety switch

3.2.4. Emergency Stop (Optional)

Press the rocker switch on the armrest. Press the emergency stop button. The

stairlift should stop if the button was pressed. The status display indicates .

Check the wiring inside the armrest if there is any problem.

Figure 3-3 Emergency stop button
