4-21

4.6.1. Rollers Replacement

i. Remove C-rings and rollers from the shafts.

ii. Clean the shafts and apply lubricant on the shafts and inner bores of new

rollers.

iii. Install new rollers and shafts on the carriage.

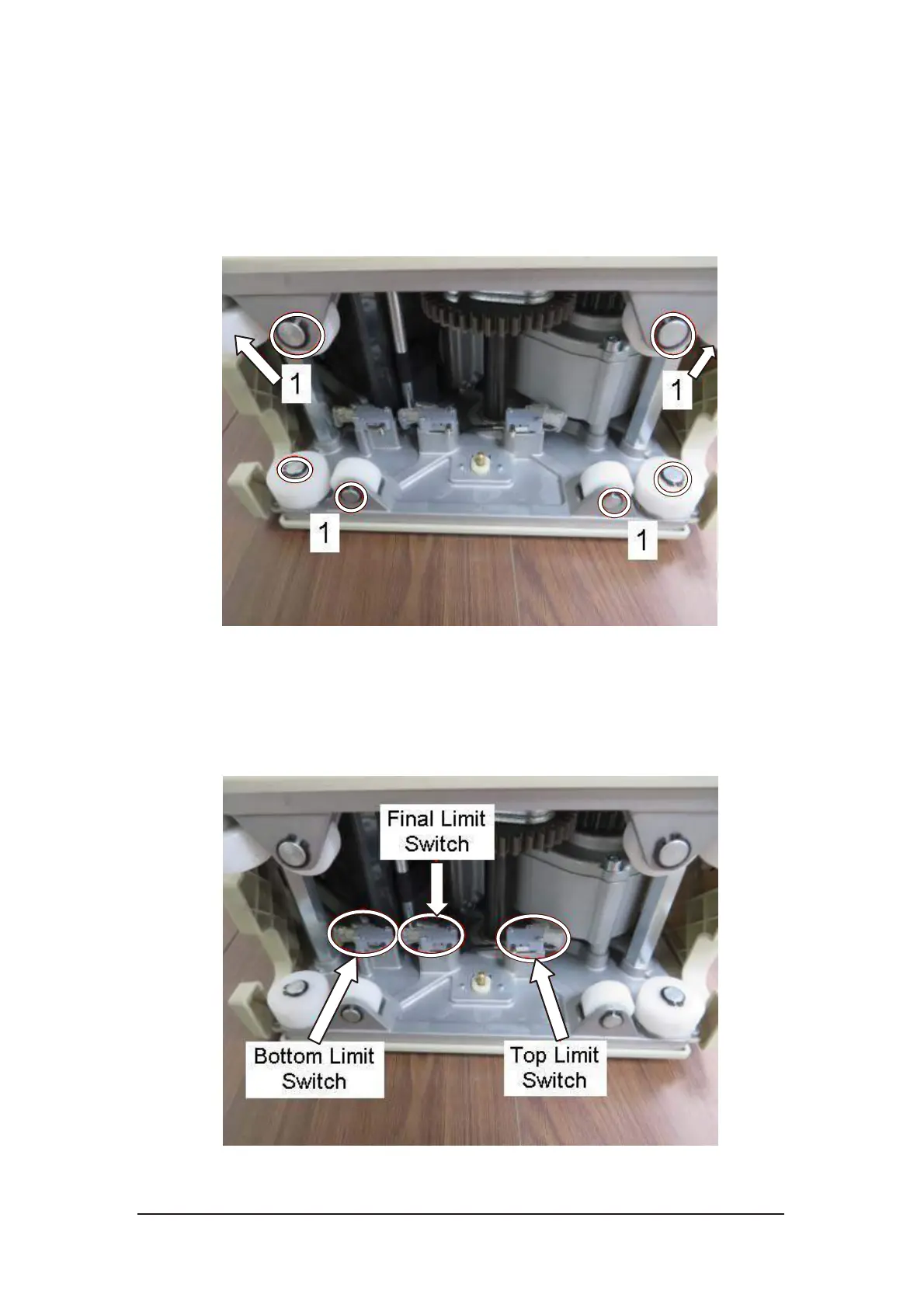

Figure 4-38 Carriage rollers

4.6.2. Limit Switches Replacement

i. Loosen the screws and disconnect the cable to remove the limit switch.

ii. Install the new limit switch.

Figure 4-39 Carriage limit switches
