2-5

145mm(5-5/8") 260mm(10-1/4")

170mm(6-5/8") 270mm(10-5/8")

190mm(7-1/2") 280mm(11")

205mm(8-1/8") 285mm(11-1/4")

225mm(8-7/8") 295mm(11-3/4")

240mm(9-1/2") 305mm(12-1/8")

255mm(10") 315mm(12-1/2")

2.4. Connect rail sections together (if required)

Place the rail sections end to end on the floor. Connect the rail sections using the

splice bars in the accessory box. Slide the rails together. Tighten the screws to

secure the rail sections together.

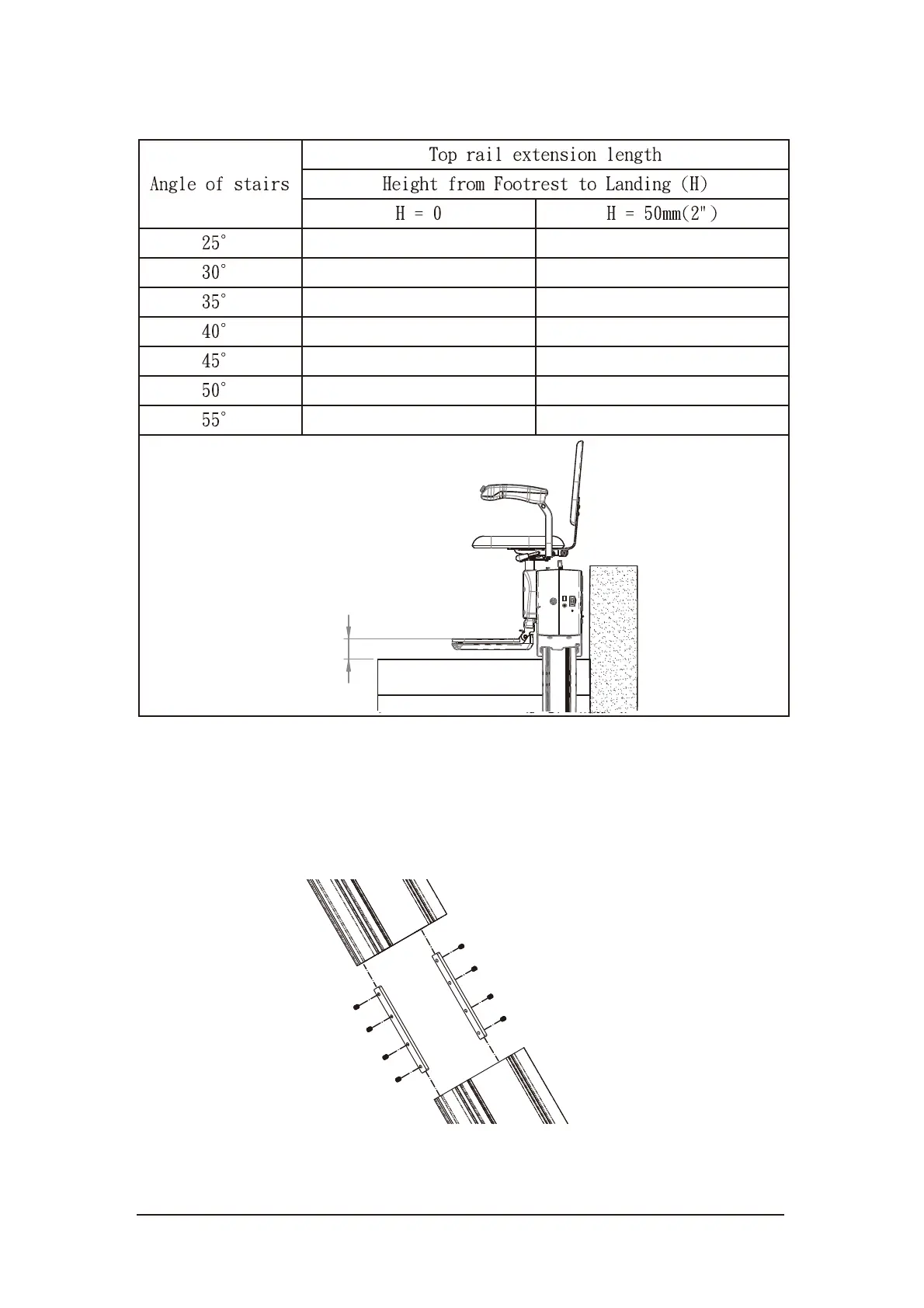

Figure

2-6 Connect rail

sections together

Table 2-1 Top rail extension length
