2-19

2.11.2. Install Carriage Side Covers

Install the side covers on the opposite side of footrest.

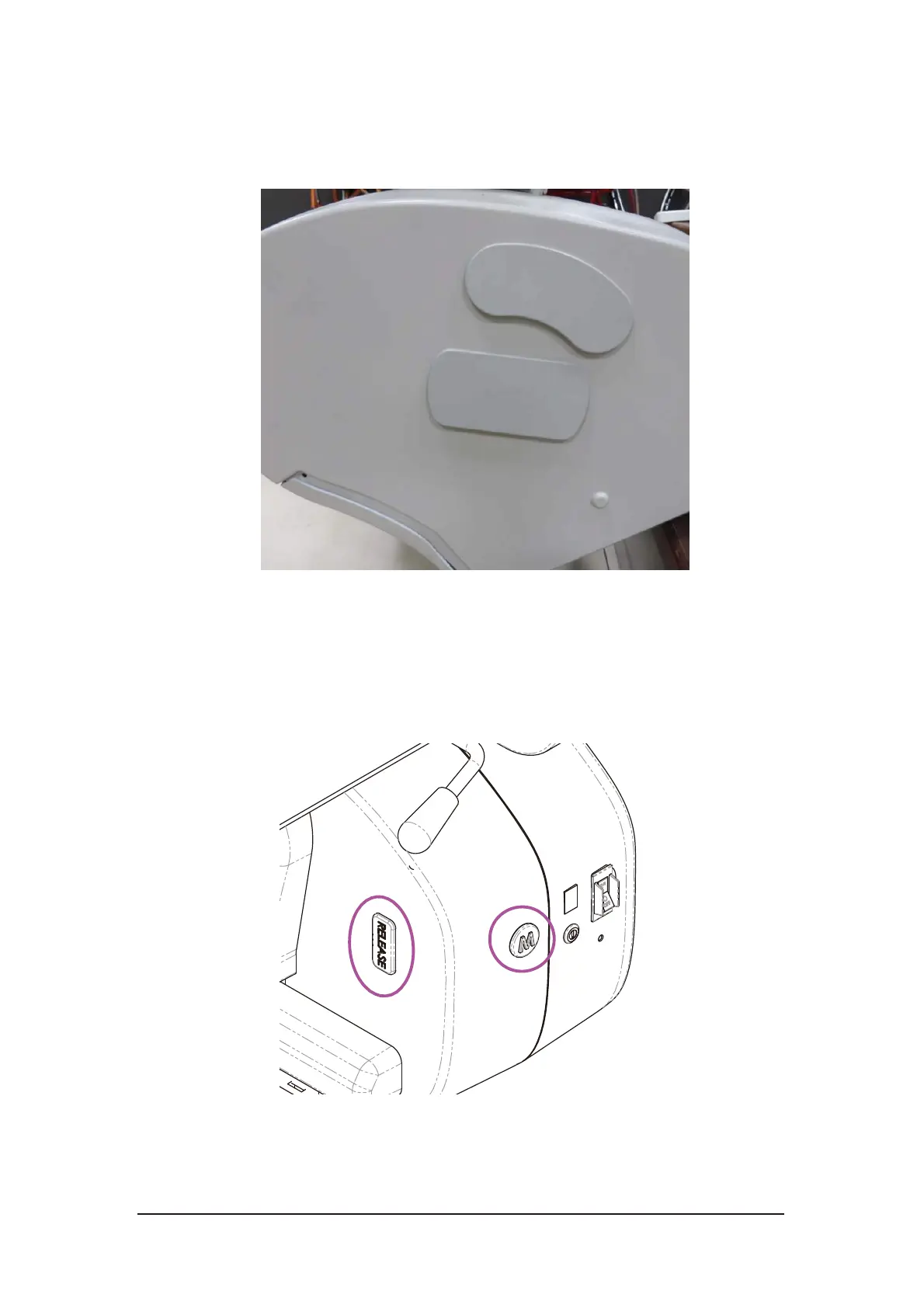

Figure 2-31 Install carriage side covers

2.11.3. Install Carriage Rubber Plugs

Install the side covers on the opposite side of footrest.

Figure 2-32 Carriage rubber plugs
