2-10

2.8.2. Engage Carriage Gear with Rack on Rail

Release the motor brake if required. Use the hand crank to drive the carriage

down about 1”.

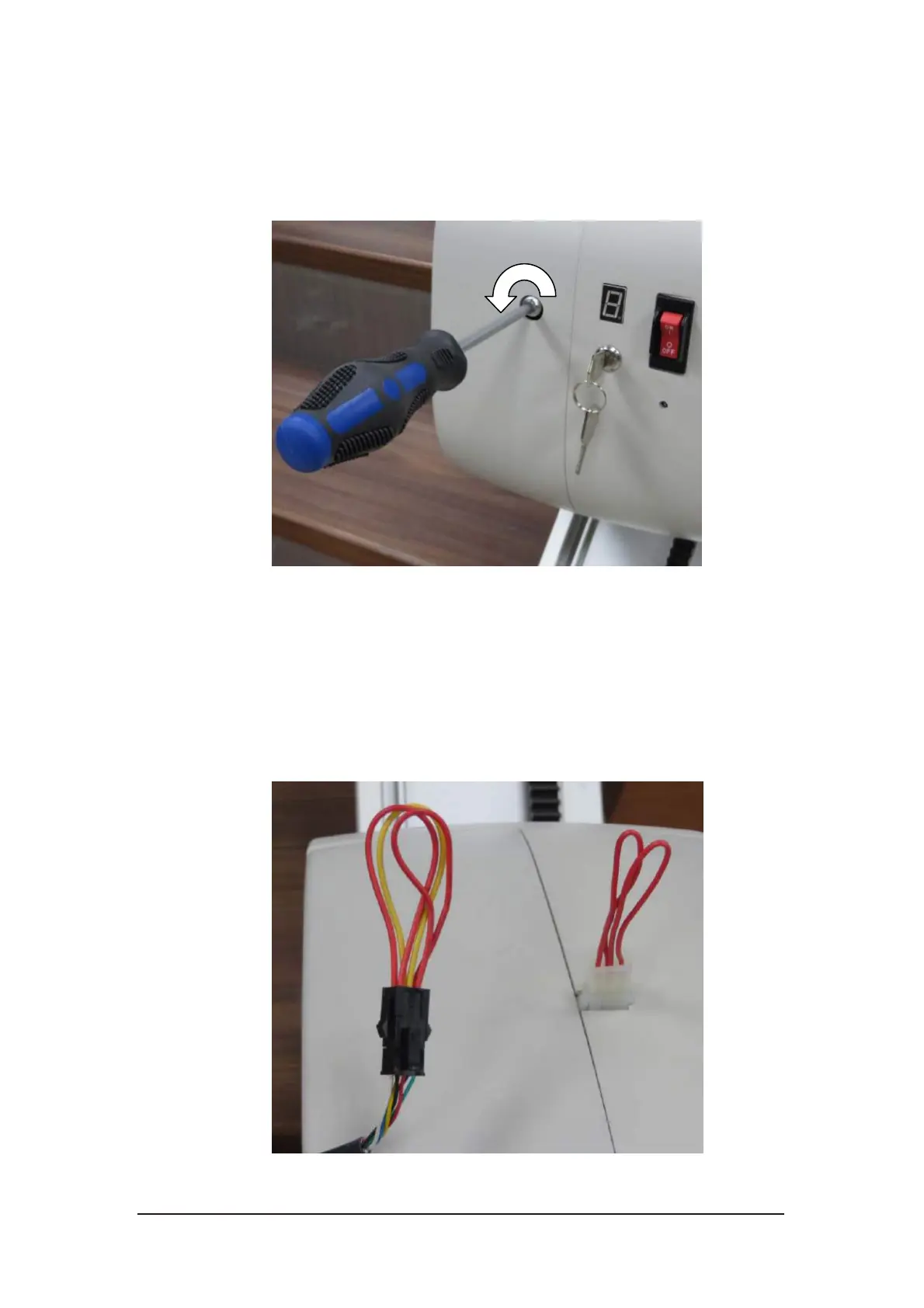

Figure 2-13 Drive carriage down by hand crank

2.8.3. Move Carriage Down by Remote Controller

Plug the short links of seat and footrest into the seat connector and the footrest

cable. Use the remote controller to drive the carriage down to install the top

section of steel rack.

Figure 2-14 Plug short links on carriage
