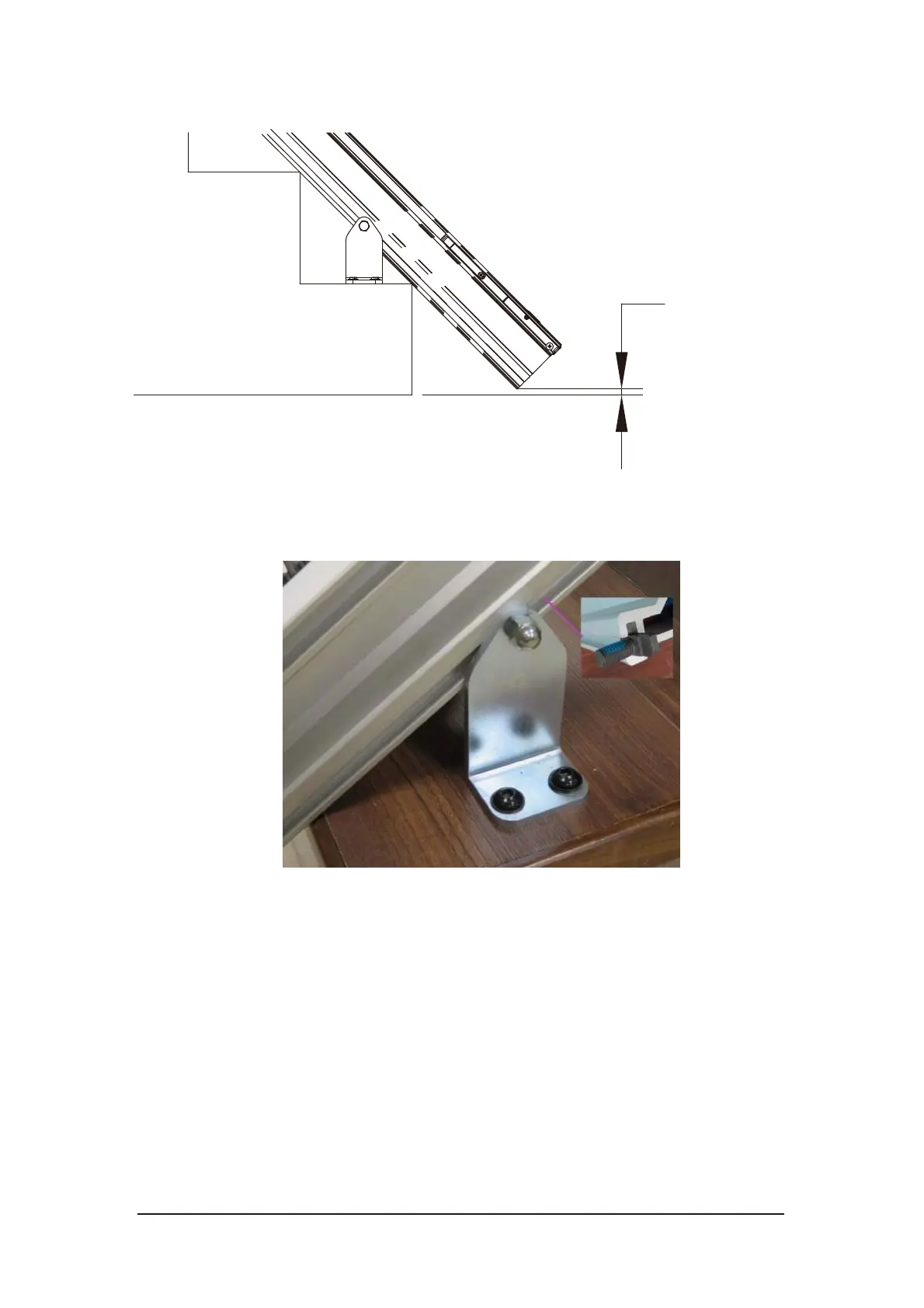

Figure 2-8

ail bottom distance to the floor

Figure 2-9 Install mounting brackets

2.7. Install Racks on Rail Assembly

Loose the screws of the rack on the upper rail section and slide down to the lower

rail section. Mesh the rack sections together tightly and tighten the screws to secure

the rack. Fill up the entire of rail with rack. The steel rack need to be cut 1/2” shorter

than the rail to allow for installation of top rail cap. Make sure that there are at least

two fasteners for the top rack section before cutting the rack. Swap the position of

the short rack sections with the long one to meet the requirement if necessary.

Leave the top rack section uninstalled.
