4-13

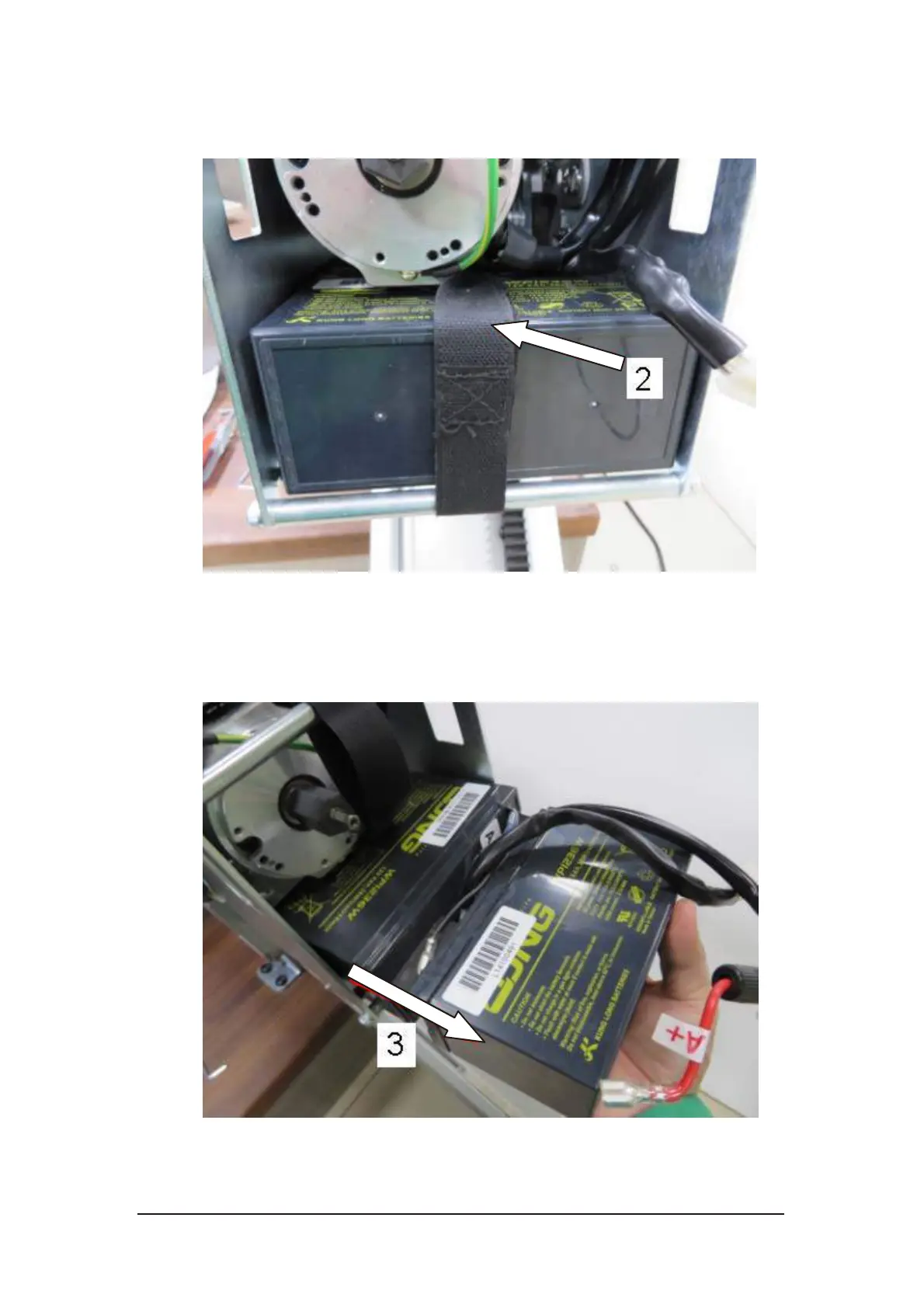

ii. Loosen the battery strap.

Figure 4-23 Loosen the battery strap

iii. Slide the batteries out.

Figure 4-24 Slide the batteries out
