4.7. Rail Removal

i. Loosen the rack screws on the top rail section. Do not remove the screws.

ii. Slide the racks up onto the upper rail section. Tighten the screws to fix the

racks.

iii. Loosen the set screw on the splice bars.

iv. Slide the splice bars up or down to separate two rail sections.

v. Loosen the bolts on the bracket.

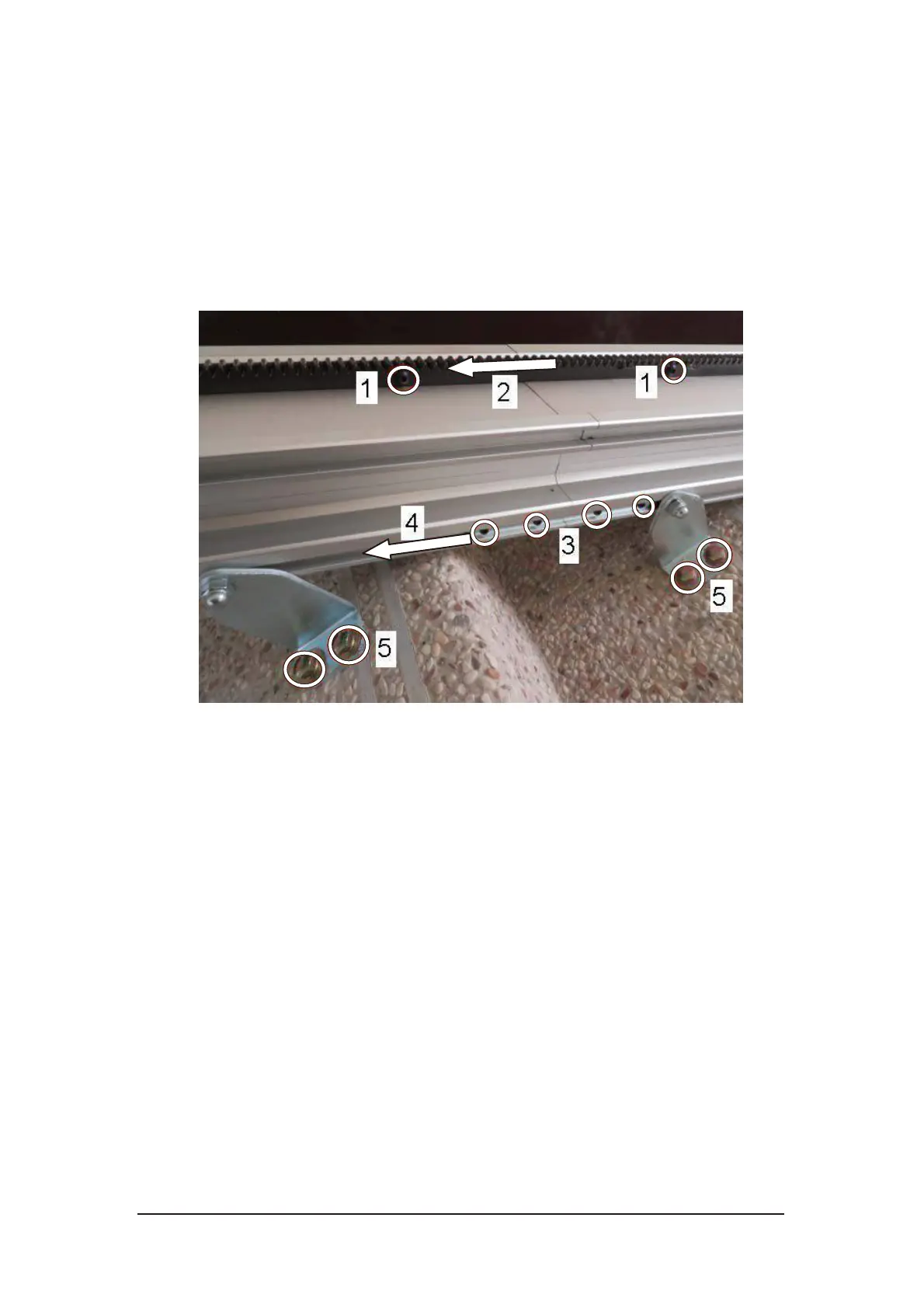

Figure 4-40 Rail removal
