2.12. Install Charger

Determine the charger location (upstairs or downstairs). Insert the wires from the

top of the rail. The yellow connector need to be at the same location as the charger.

Plug the charging wires into the charging bases.

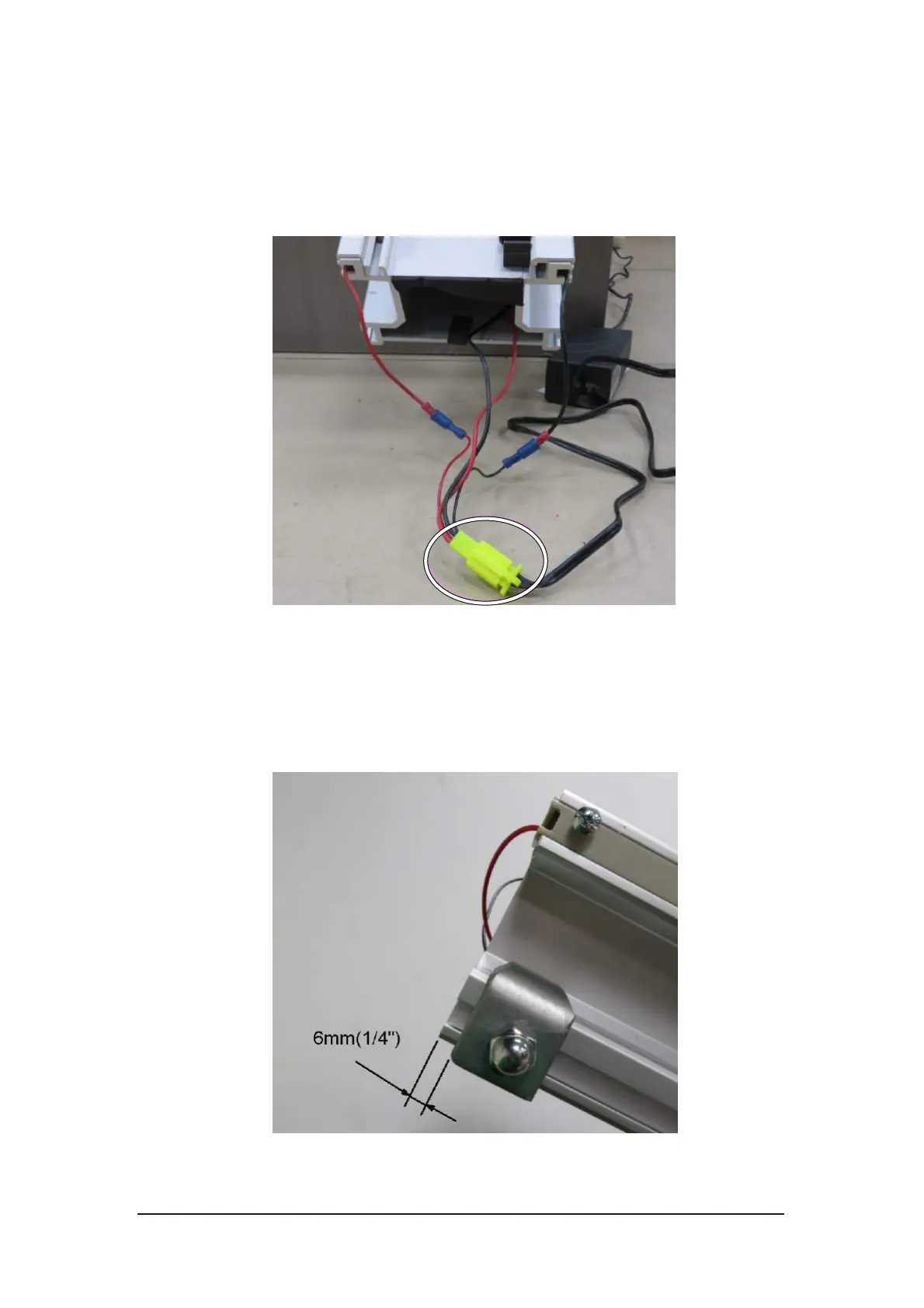

Figure 2-33 Charger and connectors

2.13. Install Mechanical Stop

Install mechanical stops at the top of rail.

Figure 2-34 Mechanical stops
