4-15

WARNING

DO NOT use fuse over the rated current.

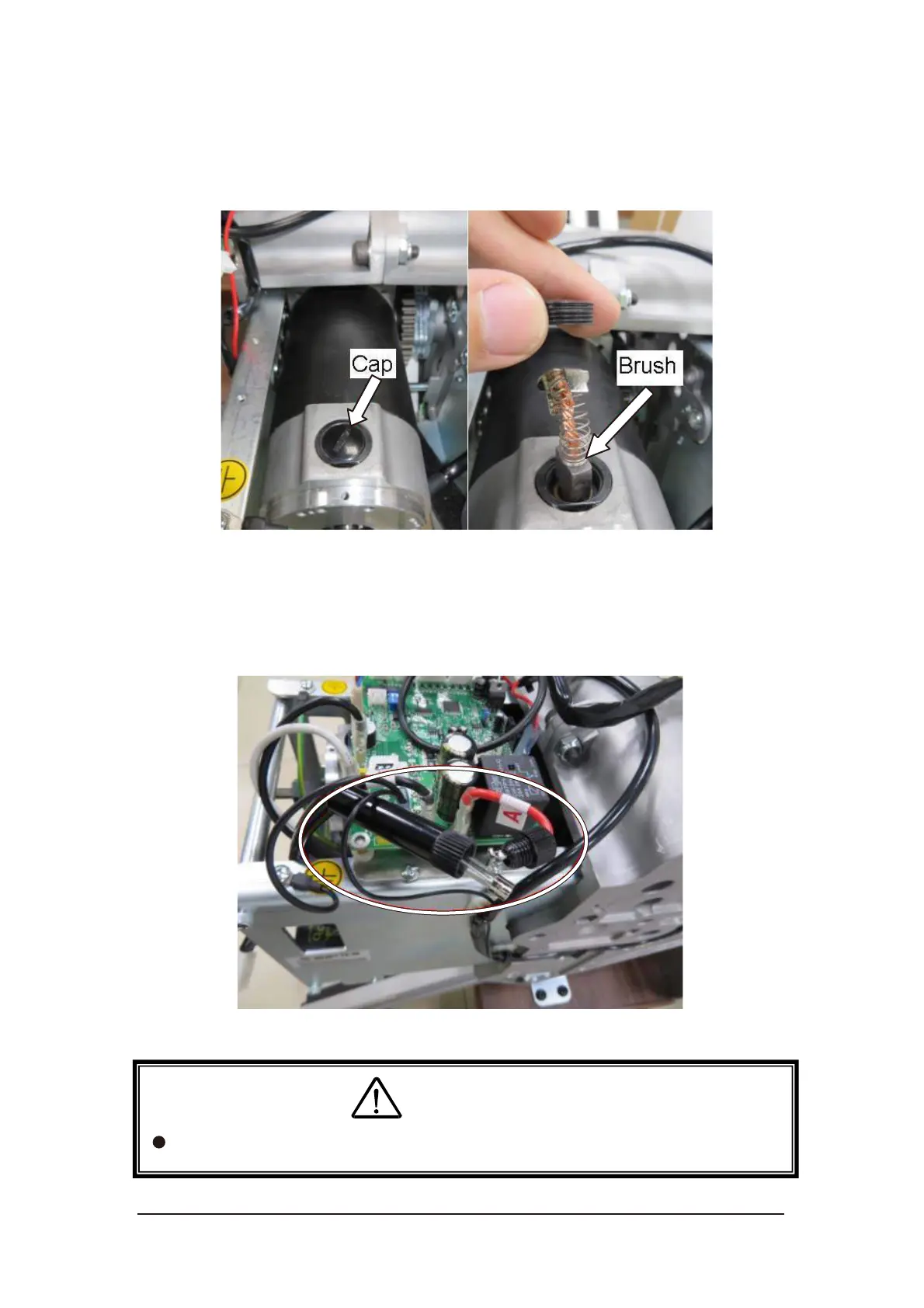

4.4.3. DC Motor Brushes Replacement

i. Remove batteries and control PCB.

ii. Open the cap and replace the brush. Another brush is on the battery side.

Figure 4-27 DC Motor brushes replacement

4.4.4. Fuse Replacement

i. Open the fuse holder and take out the fuse.

ii. Insert new fuse into the fuse holder and tighten the holder.

Figure 4-28 Fuse replacement
