2-14

2.9.4. Plug in Connector to Carriage Footrest Cable

Turn off the power and key switch. Remove jumper plug from the carriage

footrest cable. Plug in either L or R connector to the carriage footrest cable.

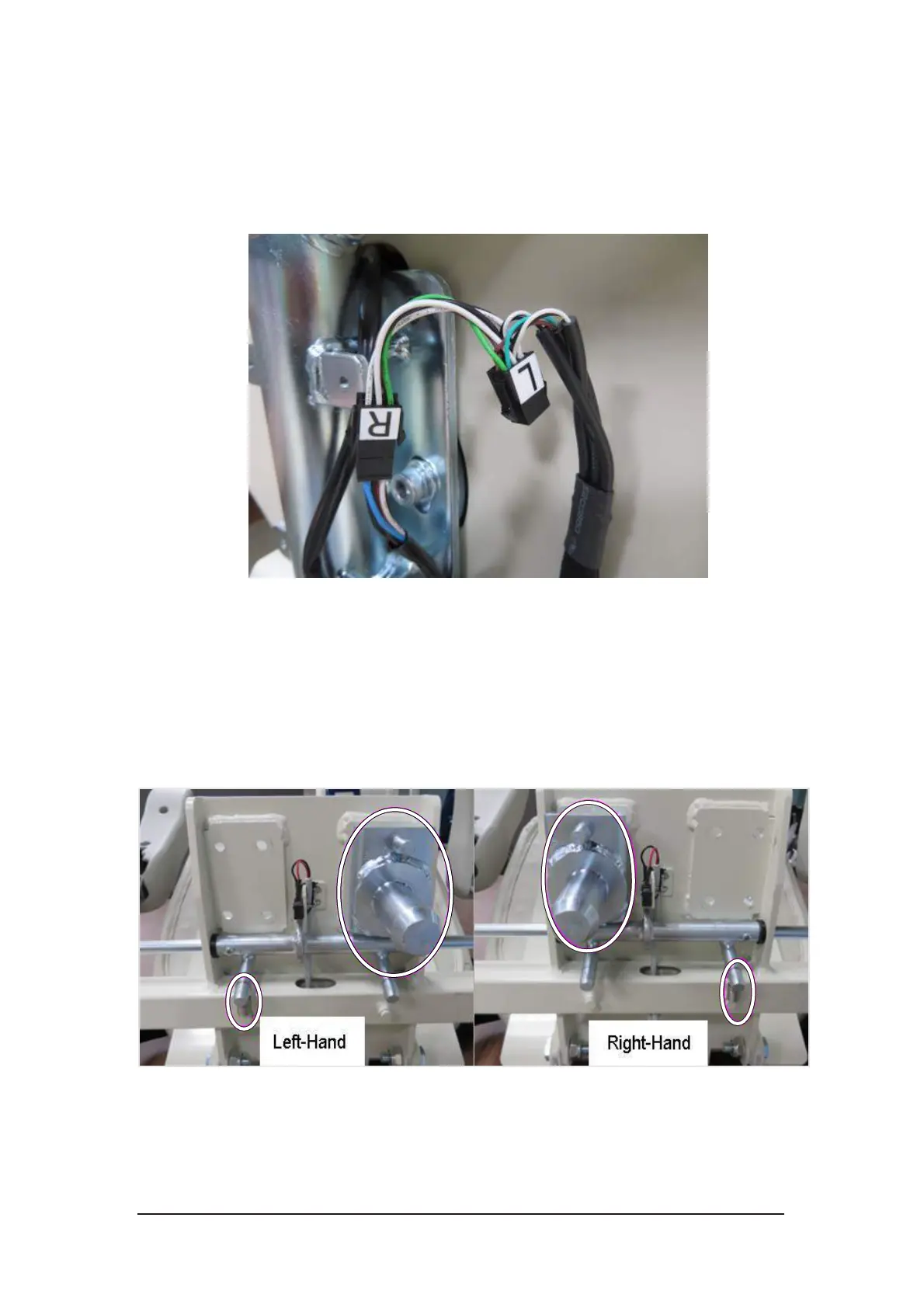

Figure 2-21 Footrest connector

2.10. Install Seat Assembly

2.10.1. Check Handing of Seat

Turn off the switch on the carriage. Check the handing of the seat. Switch the

handing if required.

Figure 2-22 Seat handing
