Merits Pilot - Covers Removal; Figure 4-17 Top Obstacle Sensor Cover Removal; Figure 4-18 Bottom Obstacle Sensor Cover Removal

66 pages

Save Page as PDF

To Next Page

To Previous Page

4-10

4.4. Covers R

emoval

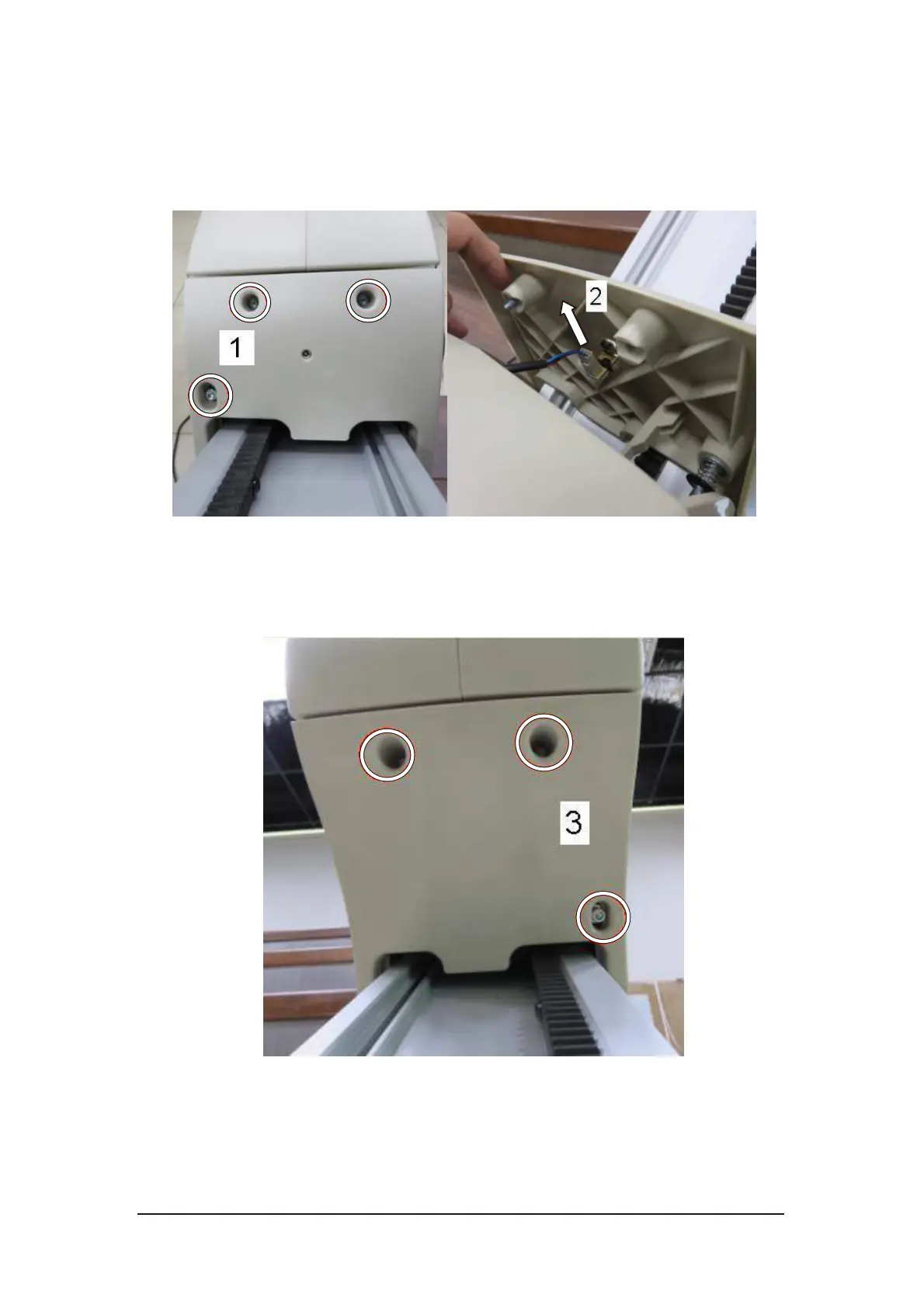

i. Loosen the three screws on the top obstacle sensor cover.

ii. Disconnect the IR PCB cable and removethe top obstacle sensor cover.

Figure 4-17 Top obstacle sensor cover removal

iii. Loosen the three screws on the bottom obstacle sensor cover and remove it.

Figure 4-18 Bottom obstacle sensor cover removal
