4-2
4.1. Armrest Components Replacement
4.1.1. Rocker Switch Replacement
i. Loosen the two screws from the bottom of the armrest and take the cover
apart from the armrest.
ii. Disconnect the connector of rocker switch.
iii. Press the snap features on both side of rocker switch and then push the
rocker switch out.
iv. Remove cable from the switch and connect to new one. Remember to
connect the cable in the same color sequence.
v. Snap the rocker switch in the top armrest cover.
vi. Reconnect the connector and assemble the bottom cover. Be careful not
to trap the cables while assembling this cover.

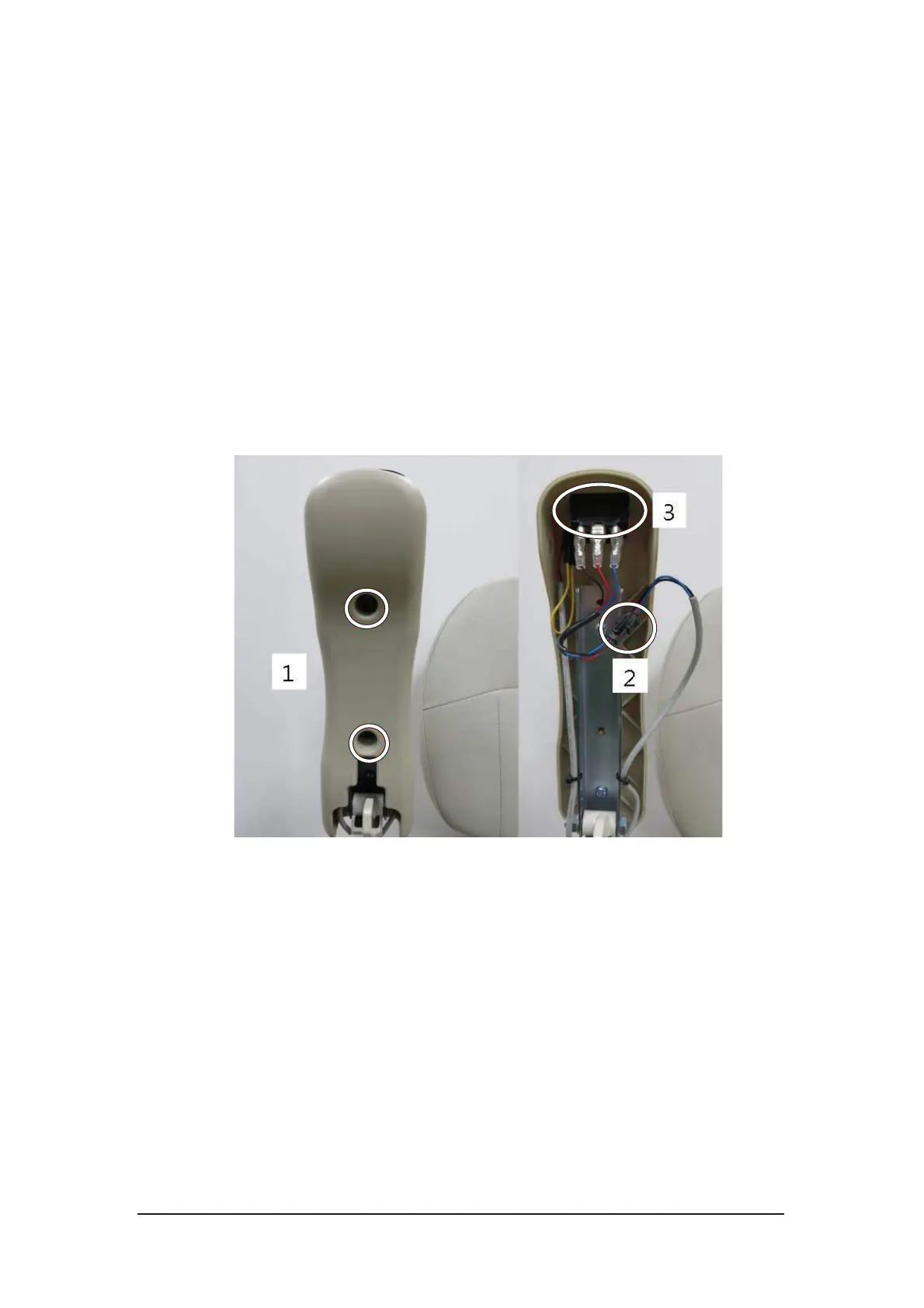

Figure 4-2 Rocker switch replacement
4.1.2. Armrest Switch Replacement
i. Loosen the two screws from the bottom of the armrest and take the cover
apart from the armrest.
ii. Disconnect the two connectors of armrest switch and cut the cable ties.
iii. Loosen the two screws on the switch.
iv. Install the new switch and tighten two screws. Adjust the switch to ensure
the switch is working properly.
v. Snap the rocker switch in the top armrest cover.
vi. Reconnect the connectors and use cable tie to fix the cables.
vii. Assemble the bottom cover. Be careful not to trap the cables while
assembling this cover.
