4-19
4.5. Top Rail Accessories Removal
i. Loosen the two screws on rail end cover. Remove the cover.
ii. Loosen the nut on mechanical stop. Remove the mechanical stops on
both sides.
iii. Loosen the set screw on the charging base. Remove the charging bases
from the rail.
iv. Loosen the set screws on the limit switch cam. Remove it from the rail.
v. Loosen the screws on the top rack section. Remove it from rail.

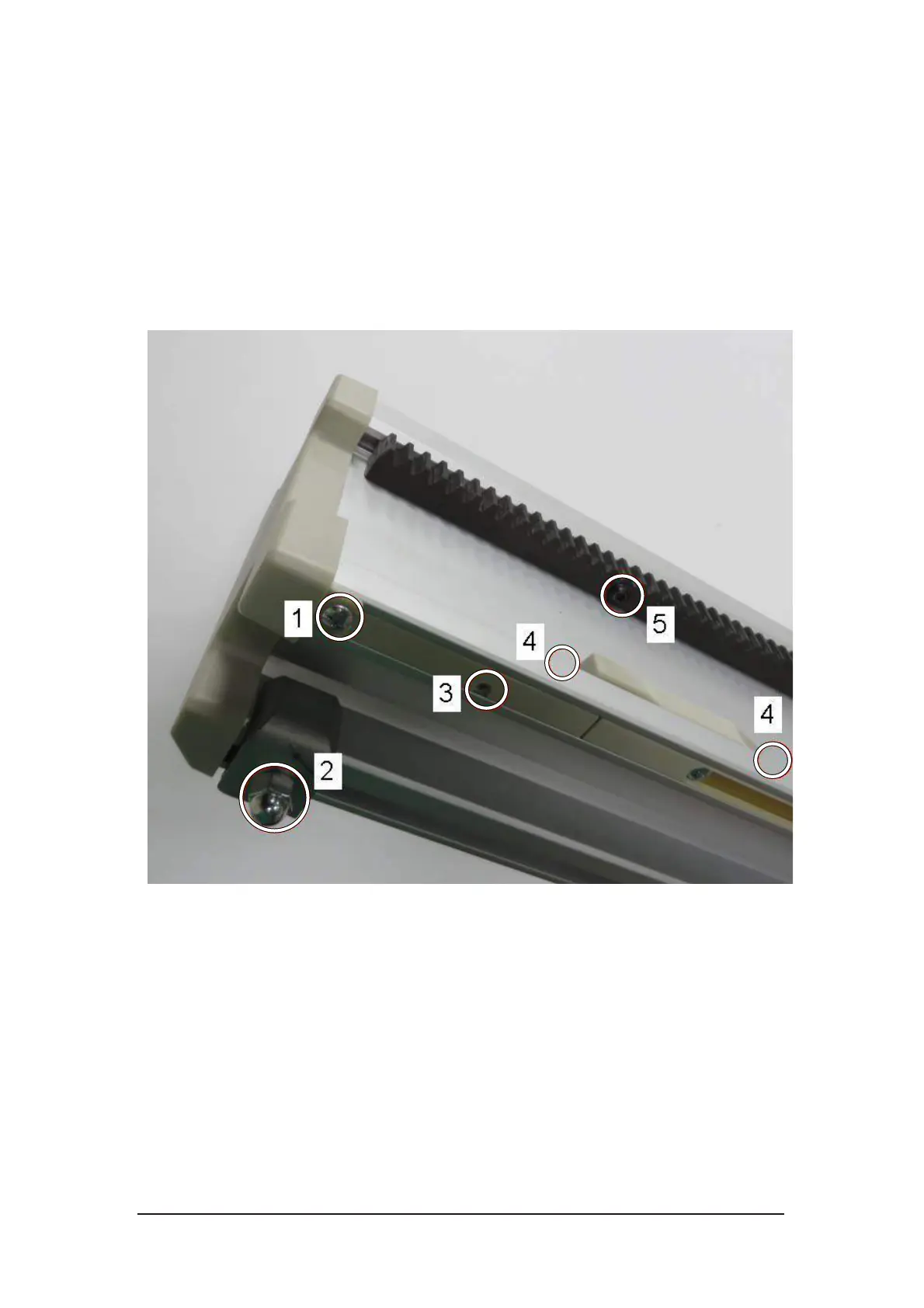

Figure 4-35Top rail accessories removal
4.6. Carriage Removal
i. Plug the seat jumper and footrest jump on the carriage. Use remote control
to move the carriage up slowly to the end of rack.
ii. Remove the motor plug and release plug.
iii. Rotate the release lever up to release the motor brake. (if required)
iv. Use the hand crank to move the carriage up until the gear and rack can be
separated.
v. Slide the carriage up carefully until the bottom rollers leave the rail.
To Next Page
