3.0 Hardware Description

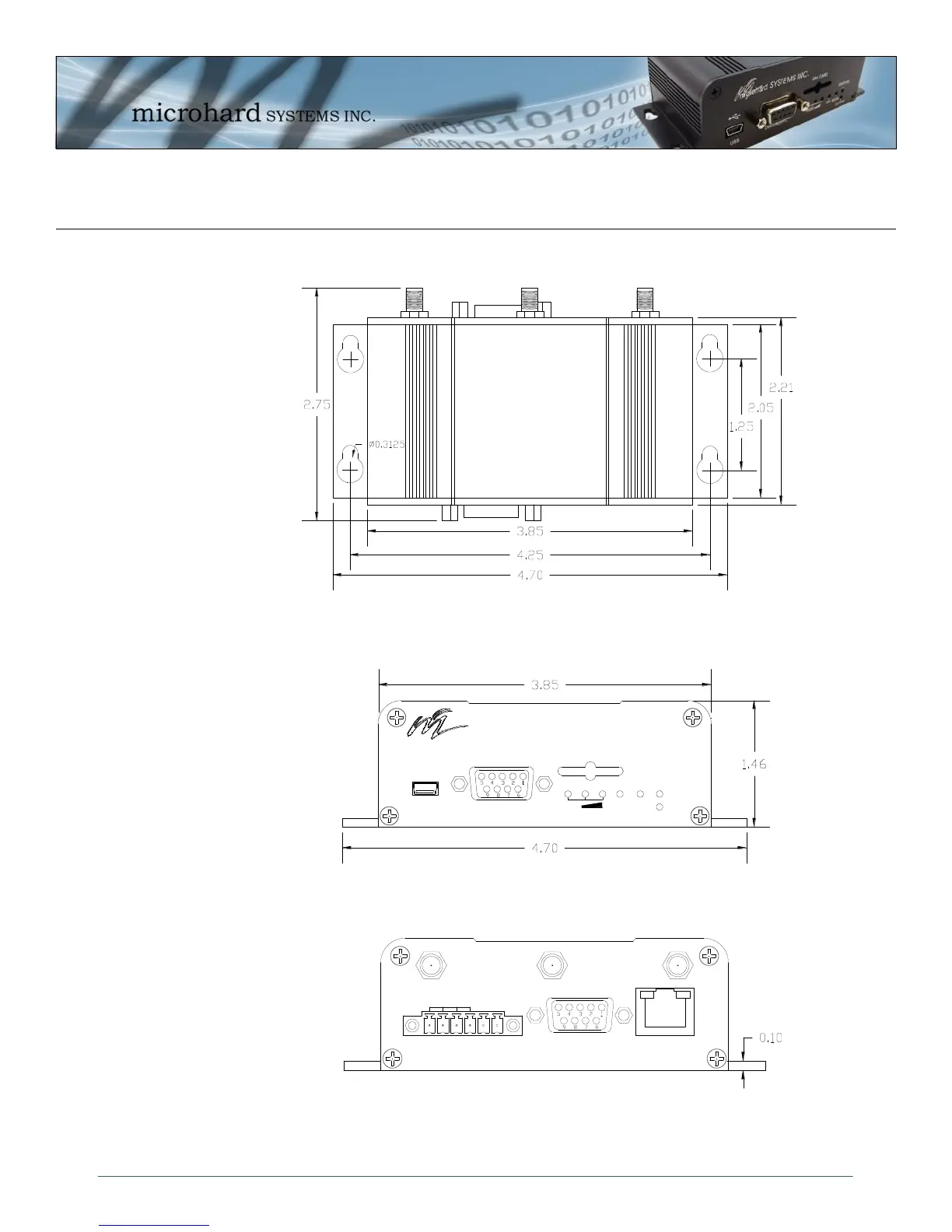

3.1.1 IPn3G Mechanical Drawings
Drawing 3-2: IPn3G Front View
Image 3-3: IPn3G Back View
Notes: The dimension unit is inches.
Drawing 3-1: IPn3G Top View
IPn3G-ENC
Top View
microhard SYSTEMS INC.
SIM CARD
RSSI
DIAGNOSTIC
RF SGNL
STATUS
CONFIG
USB
RS485/422
Vin+
GND
RxA
RxB
TxA
TxB
DATA
ETHERNET
ANTENNA
GPS
RX DIV
