4.0 WebUI Configuration

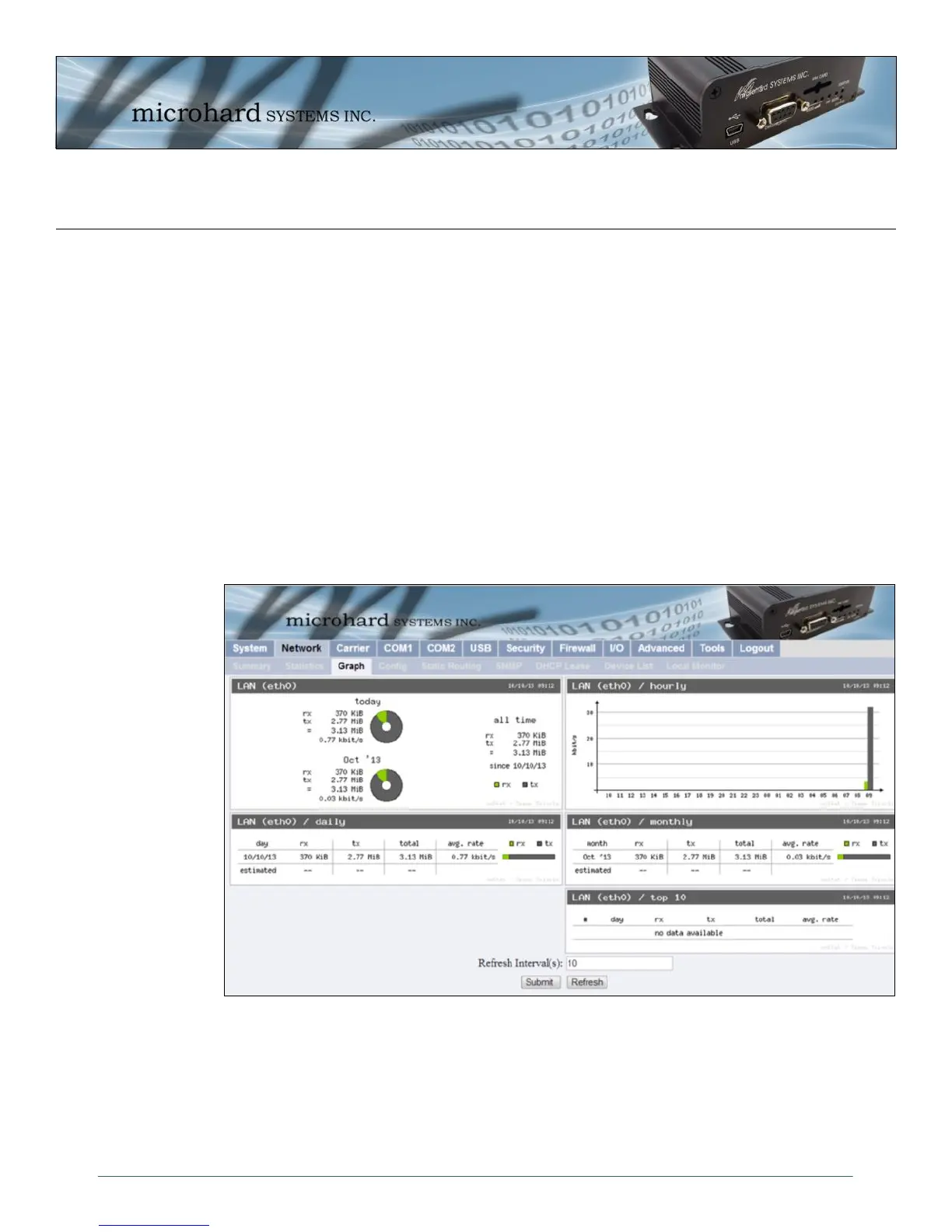

Image 4-10: Network Graph
4.3.3 Network > Graph
The Network > Graph tab displays a graphical display of the Ethernet Traffic on the Ethernet interface of
the IPn3G.
LAN (eth0) Shows an overview of all data sent or received by the IPn3G at the physical
Ethernet port on the rear of the unit. A summary of the data of the current day
and the current month is shown.
LAN (eth0) / hourly Shows the traffic volumes (TX = green, RX = grey) at hourly intervals during
the current 24 hour period. This could be useful to see when the most or least
amount of traffic is present.
LAN (eth0) / daily Shows the total data received and transmitted for the day, as well as the
average rate of data.
LAN (eth0) / monthly Shows the total data received and transmitted for the current month, as well as
the average rate of data.
LAN (eth0) / Top 10 Show the top 10 days with the most data sent or received.
