3.0 Hardware Description
3.1 IPn3G Hardware
The IPn3G provides a fully enclosed, stand alone modem, requiring only cabled connections.
The IPn3G can be used on a table top like surface, or using the mounting holes provided can be
mounted anywhere for a permanent solution.
 Power
 Data (Serial) Interface
 Ethernet Interface
 USB Interface
 LED Indicators
 Antenna’s (Main, GPS, Diversity)

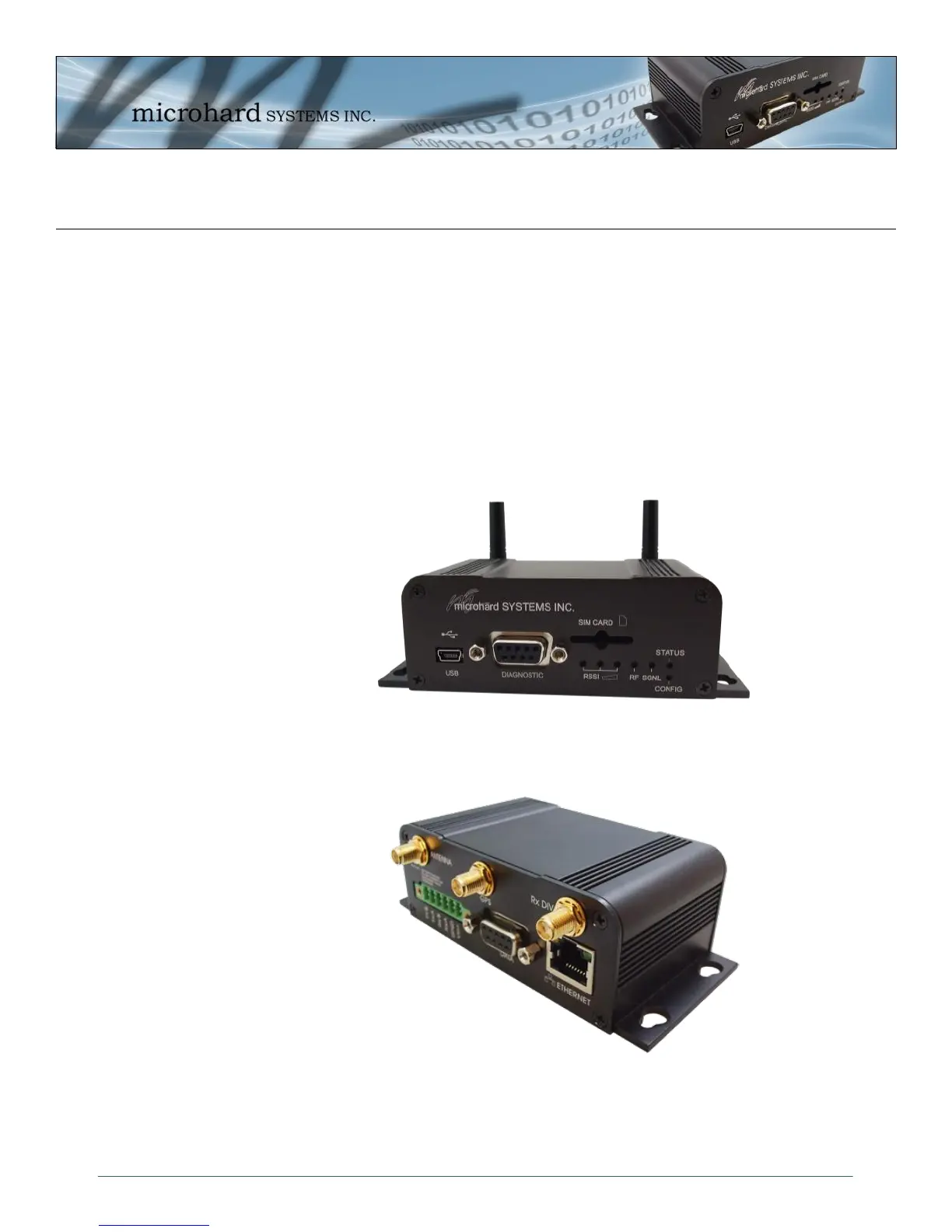

Image 3-1: IPn3G Front View
Image 3-2: IPn3G Back View
