© Microhard Systems Inc. 31
4.0 WebUI Configuration

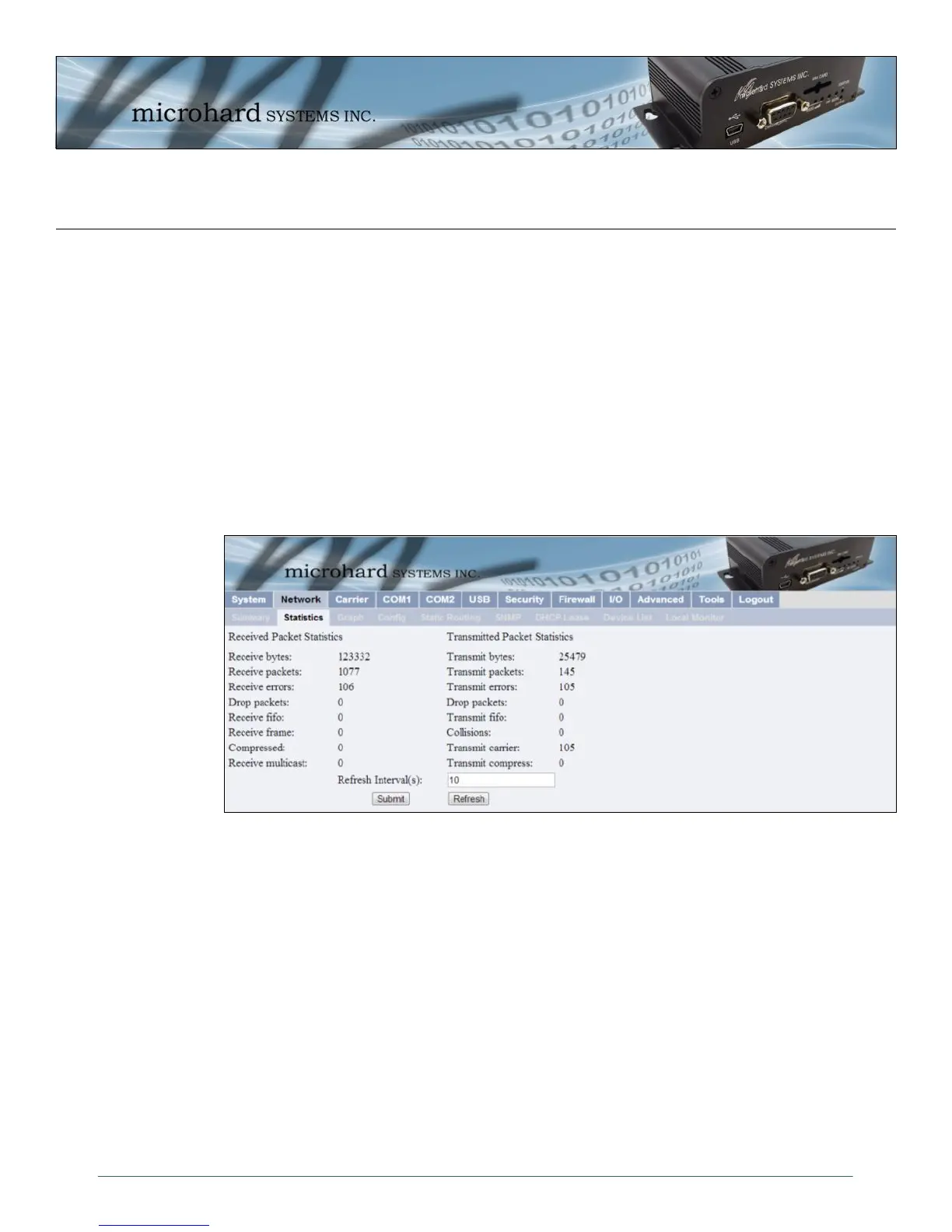

Image 4-9: Network Statistics
4.3.2 Network > Statistics
The Network > Statistics tab displays a variety of parameters which apply to the traffic through, and status
of, the physical Ethernet port (hardware interface) on the rear of the IPn3G.
Received and Transmitted information are applicable to the local data traffic into and out of the IPn3G,
respectively. Errors which are counted include alignment, frame check sequence (FCS), frame too long,
and internal MAC. The dropped packet count could increment if, for example, the network layer was too
busy to accept the data.
The FIFO errors are related to interface-specific hardware.
Collisions occur on all Ethernet networks being that Ethernet operates as a logical bus. The amount of
collisions is typically related to the number of devices on the attached network and the amount of data
being moved.
The Transmit Carrier count relates to carrier sense errors.
