OMNIScanner User Guide
1 - 8

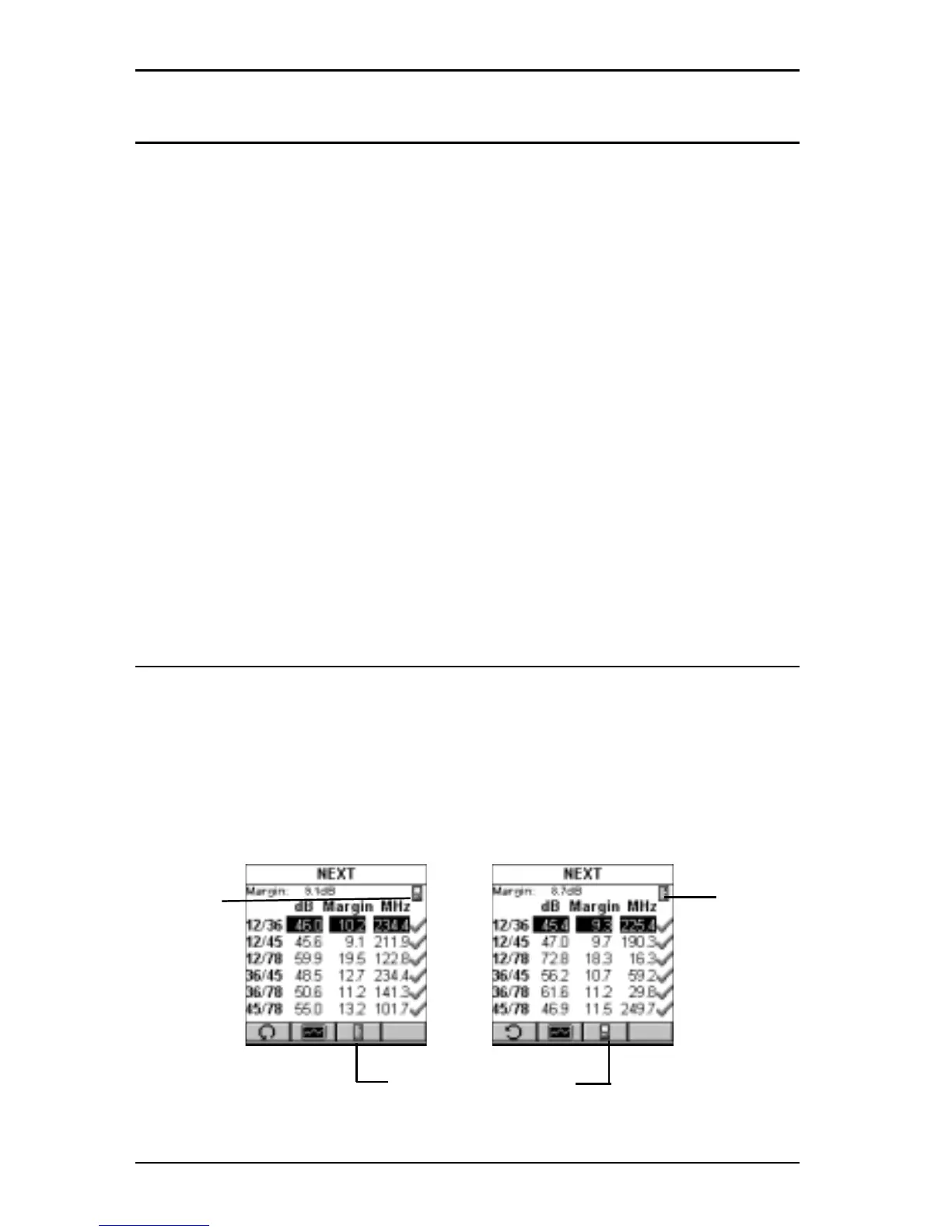

Displaying OMNIScanner and OMNIRemote Results
OMNI Scanner and OMNI Remote are used together to perform measure-
ments, which allow the scanner to verify installed links or assist in the
diagnosis of physical layer network problems. To accomplish these mea-
surements, OMNI Scanner and OMNI Remote are connected at either end
of a network-cabling link. The end at which the scanner is connected, is
referred to as the ‘Scanner end’, and the end at which the remote unit is
connected, is referred to as the ‘Remote end’.
Indicates
OMNI
Scanner
test
results.
Indicates
OMNI
Remote
test
results.
Toggles the display
from Scanner to Remote end
test results.
When To Use OMNIRemote
Most measurements require the use of OMNI Remote at the far end of the
cable. For other measurements, OMNI Remote can be connected, but its
use is optional. OMNI Scanner detects the presence of the remote unit and
automatically configures it for the measurement to be performed.
Twisted Pair Measurements requiring the use of OMNIRemote:
• Autotest • Return Loss
• Wiremap • ELFEXT and Power Sum ELFEXT
• NEXT and Power Sum NEXT • ACR and Power Sum ACR
• Attenuation
Twisted Pair Measurements not requiring the use of OMNIRemote:
• Length / Delay / Skew • Resistance
COAX Measurements do not require the use of OMNIRemote
Fiber Measurements require the use of OMNIRemote with an OMNIFiber Adapter
