OMNIScanner User Guide
2 - 12

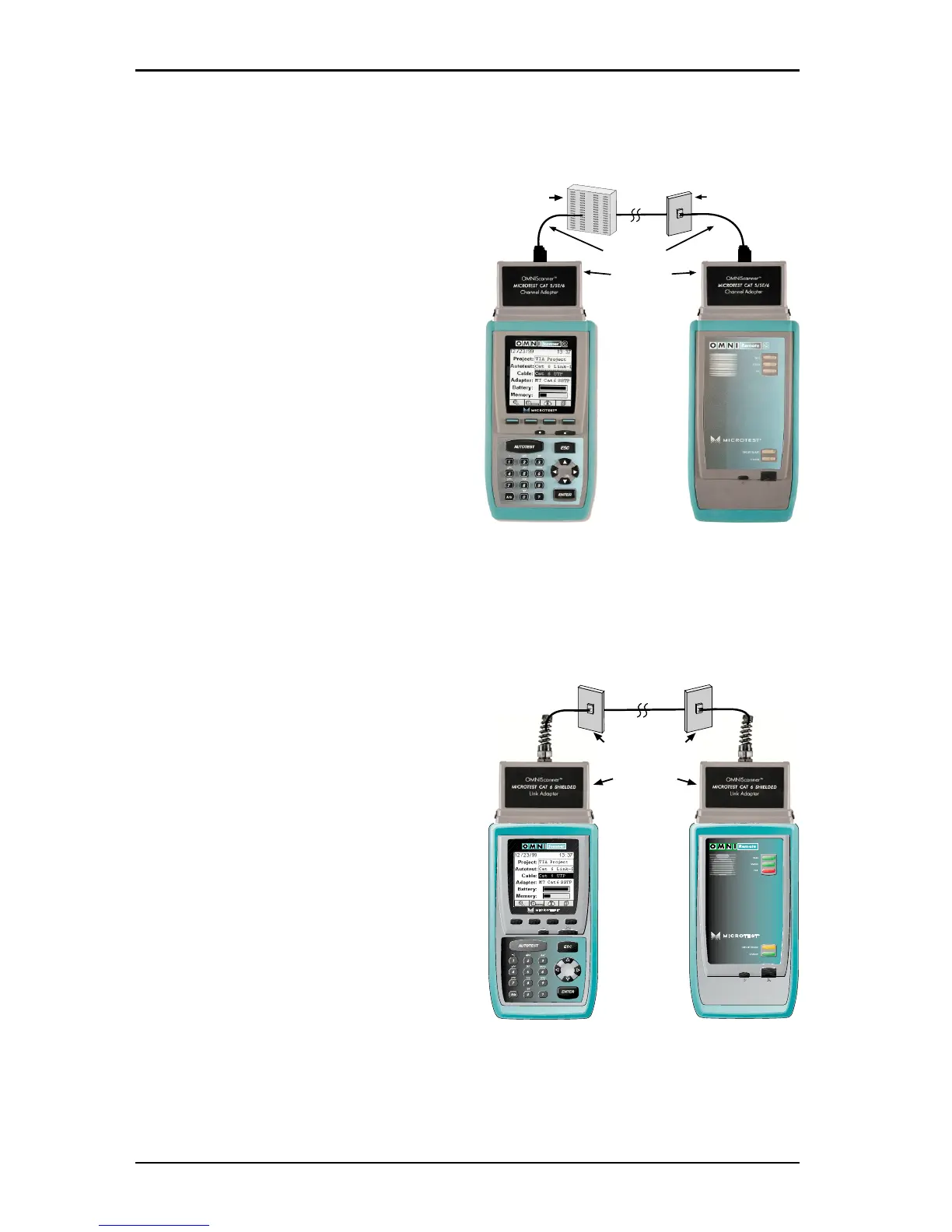

Full Channel with Modular 8 Jacks
A Full Channel consists of all the link elements from the hub to the work-
station.
For cables terminated with a modu-
lar 8 plug, use the supplied modular
8 MICROTEST Channel Adapter*
and attach OMNI Scanner and
OMNI Remote to the channel patch
cords.
*MICROTEST Channel Adapters
are available as optional accessories
for OMNIScanner LT.
Note: Best results for Category 6
channel tests will be optained when
using OMNIScanner software
version 4.0 or higher, which utilizes
AVC (Adaptive Vector Cancellation
TM
).
Permanent Link
For Permanent Link Autotests,
connect the supplied Link adapters in
the same manner as the Basic Link.
During permanent link Autotests, the
effects of the link adapters are
removed from the measurements.
The Permanent Link method mea-
sures the link only, from jack to jack
(including the Modular 8 plug that
plugs into the Jack).
Note: Best results for Category 6
channel tests will be optained when
using OMNIScanner software
version 4.0 or higher.
For more information on the Permanent Link, the Basic Link, and the
Channel, please visit www.cabletesting.com.
Cat 5/5E/6
Channel Adapter
Modular 8
Jack
110 Block
User Cable
Modular 8
(RJ-45)
Link Adapter
Modular 8 Jack
