D - 1
OmniScanner User Guide
Appendix D - Cable Pin-Outs
Described below are the functions of the electronic signals transmitted
through each pin in a connector.

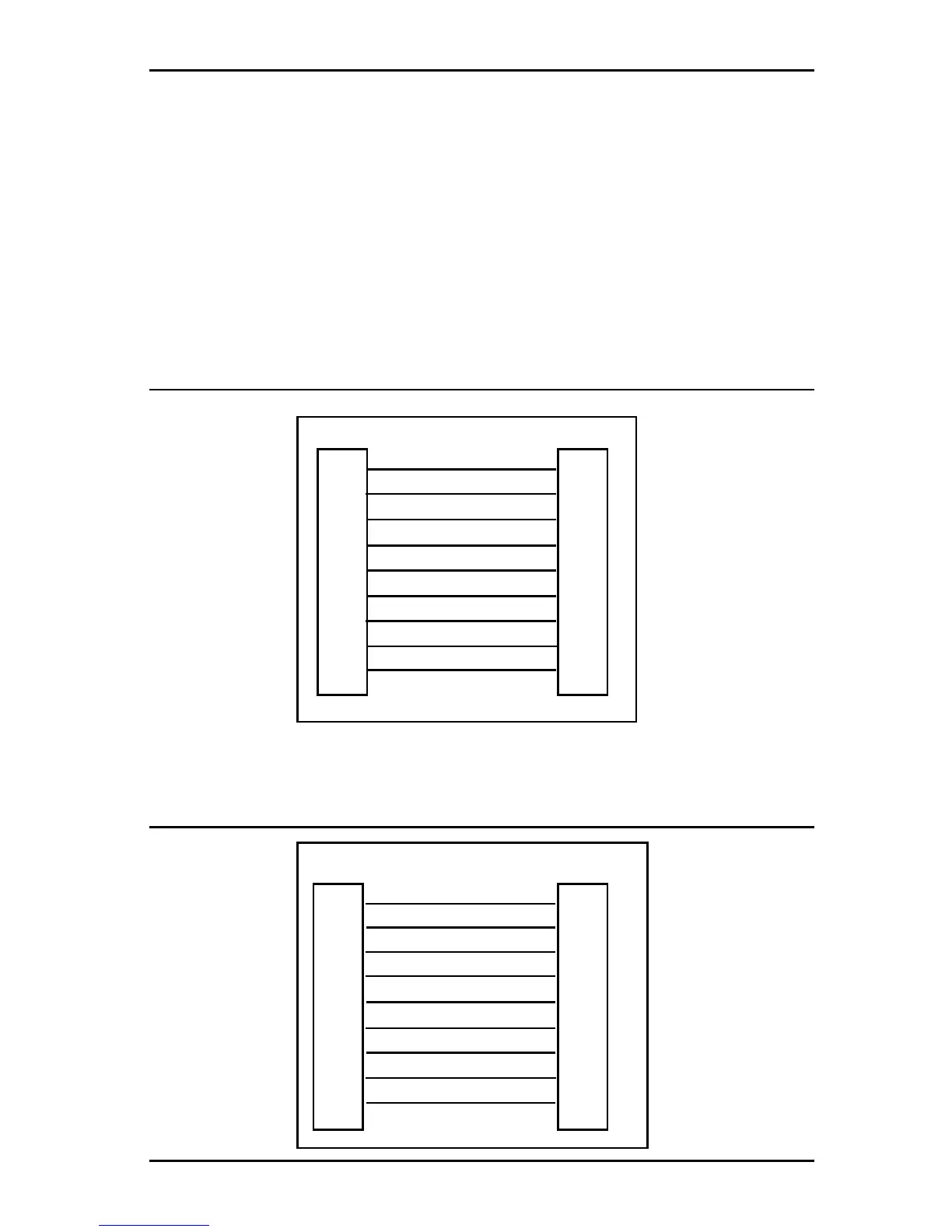

Serial Cable DB-9 Male to DB-9 Female Pin-outs
DB-9 Male DB-9 Female
11
22
33
44
55
66
77
88
99
Serial Cable DB-9 Male to DB-25 Female Pin-outs
DB-9 Male DB-25 Female
18
23
32
420
57
66
74
85
922
