1 - 7
OMNIScanner User Guide

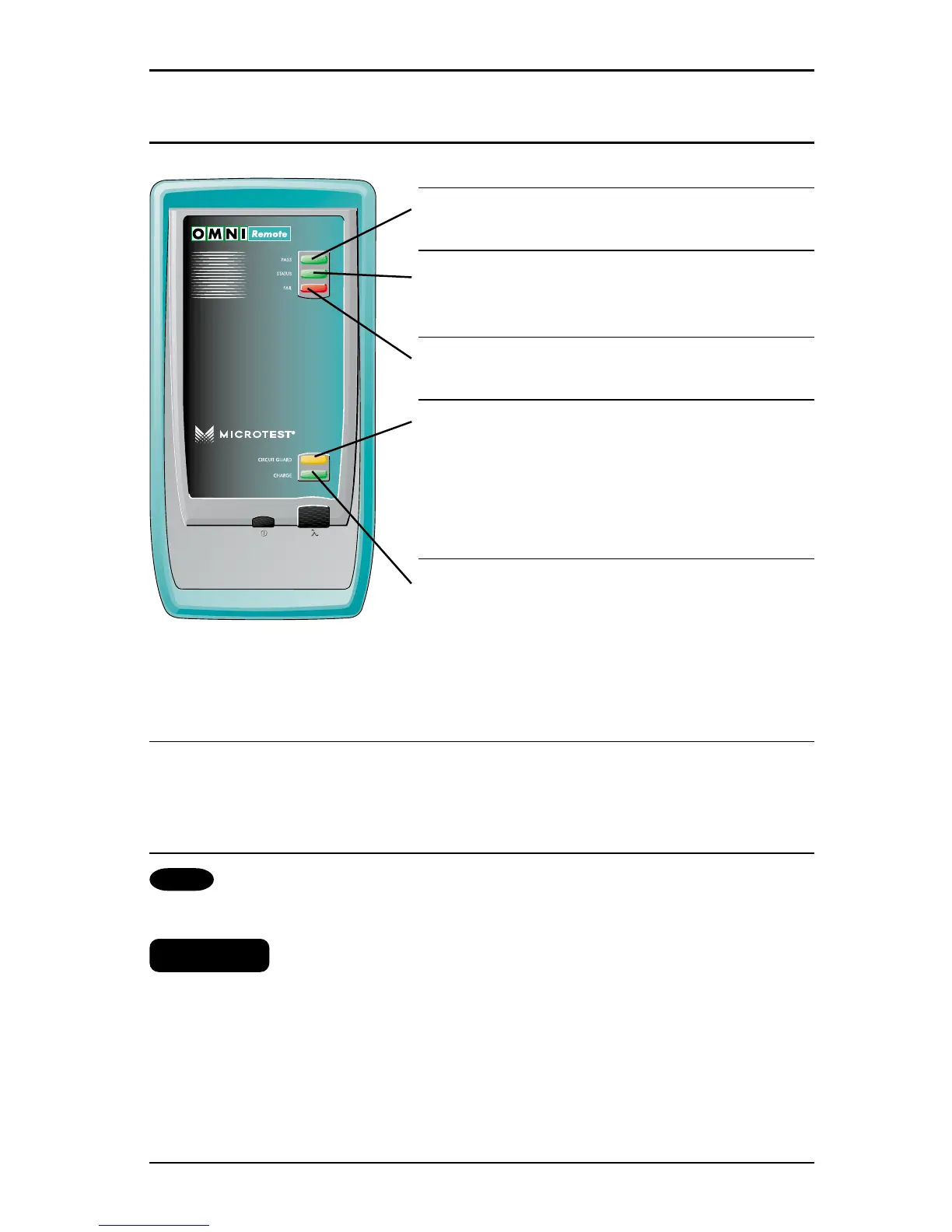

OMNIRemote’s LED Indicators
LED Color Description
PASS Green Overall Autotest Result
is PASS
Status Green (flashing) OMNIRemote is ready
for testing
Green (consistent) OMNIRemote is active
FAIL Red Overall Autotest Result
is FAIL
Circuit Orange Hazard condition is
Guard detected. LED will be lit
in 5 second intervals
until the hazard
condition disappears.
REMOVE CABLE FROM HAZARDOUS SOURCE!
Charge Green OMNIRemote is inactive,
the AC adapter is present,
and the battery pack is
being charged
Green (flashing) OMNIRemote battery is
fully charged
Red (flashing) OMNIRemote battery is low
OMNIRemote Keys
ON/OFF
When turned on OMNIRemote will blink the LEDs.
λ λ
λ λ
λ (Lambda)
When OMNI
Fiber
is attached to OMNI
Remote
, the remote unit can be
used as a light source. With the OMNI
Fiber
adapter attached, press the
λλ
λλ
λ
key to activate the light source and provide continuous or modulated light at
850, 1300, 1310 or 1550 nm. The green LED of the appropriate wavelength
will blink rapidly when modulated light is transmitted. If the transmitted light
is continuous, the green LED will not blink. (See OMNIFiber’s LED indica-
tors in this chapter for further information.)
