5 - 3
OMNIScanner User Guide
General Information

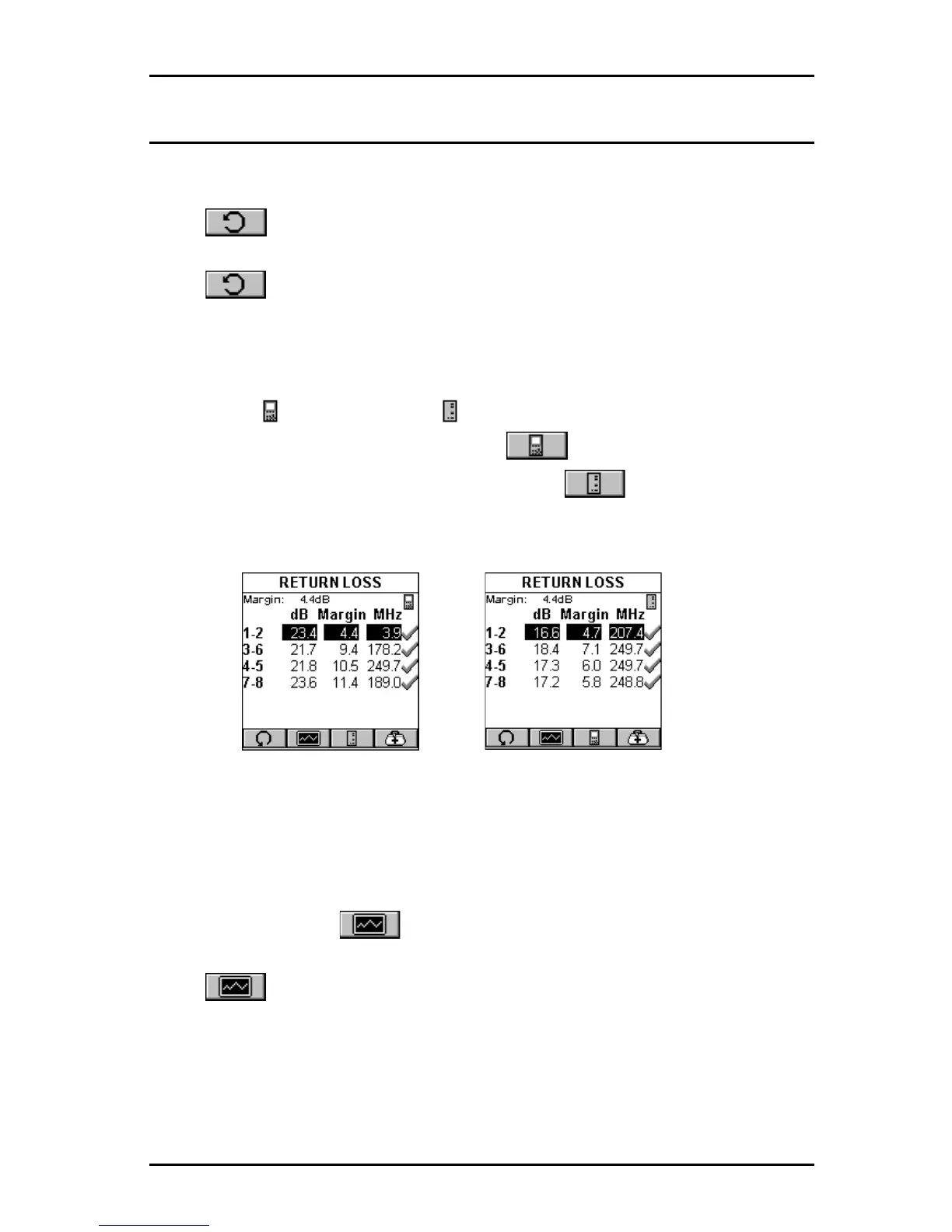

Most test result screens have a retest feature for diagnostic purposes.
Press (Retest) to run continuous tests for the same cable.
Press (Retest) once more to stop the continuous measurement.
OMNI
Scanner
will display the last measured data.
Tests that require the use of OMNI
Remote
will have small icons in the upper
right corner of the titlebar indicating whether the information on the screen is
pertinent for OMNI
Scanner
or OMNI
Remote
.
Toggle between the screens by pressing to open the screen that
contains the information for OMNI
Scanner
, and to display the
information for OMNI
Remote
.
Note: The PASS/FAIL criteria are based on the Autotest currently selected
in the Project screen.
Several measurements will display results in a graph format. When a graph
can be displayed, the (Graph) function key is available.
Press (Graph) to display test results for the highlighted pair or pair
combination.
Use the é or ê keys to magnify the area of the graph where the cursor is
located. The graph can be magnified 1x, 2x, 4x, or 10x.
