OMNIScanner User Guide

5 - 4

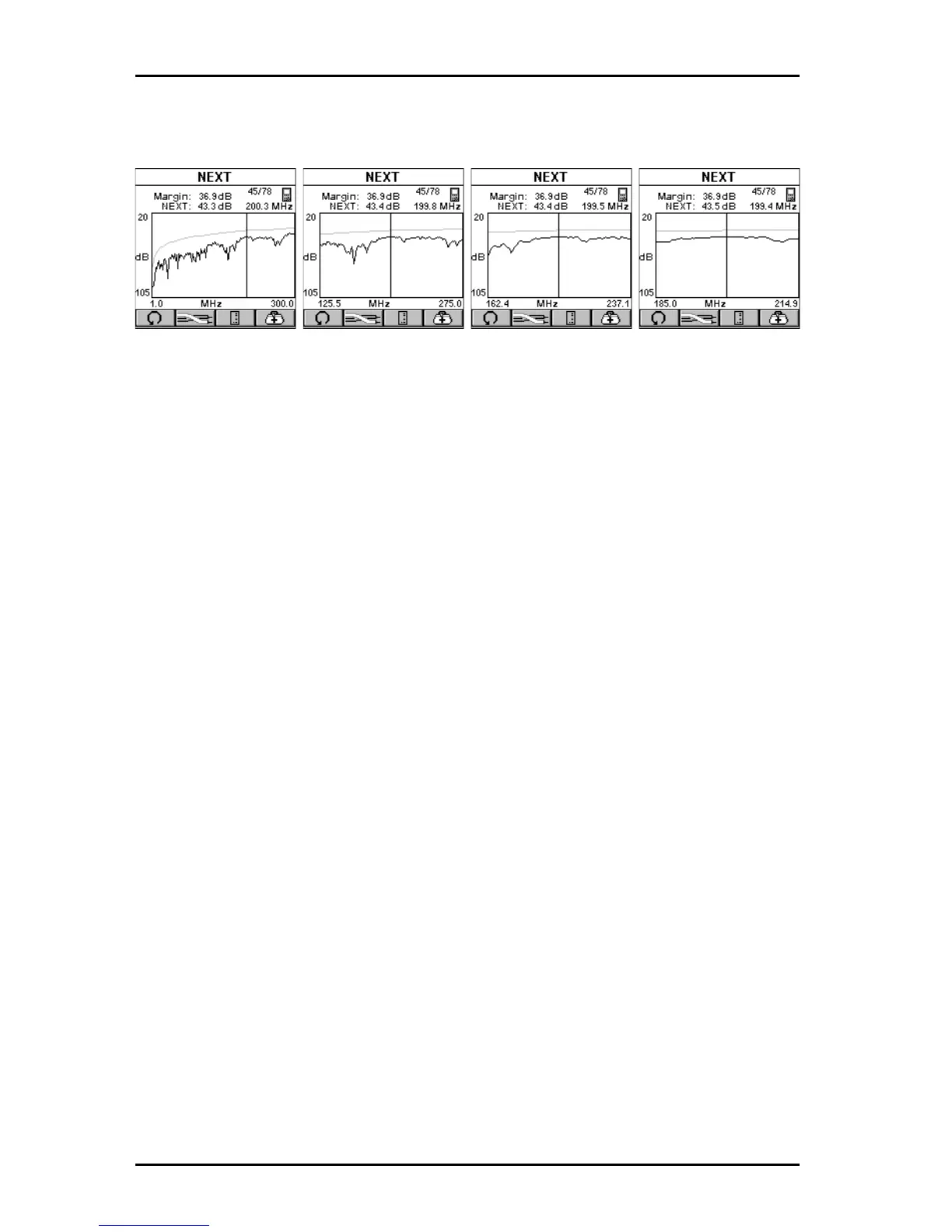

Use the ç or è keys to move the cursor within the graph.

1x 2x 4x 10x

Use the cursor to display values for the desired frequency.
