4 - 3
OMNIScanner User Guide
Autotests

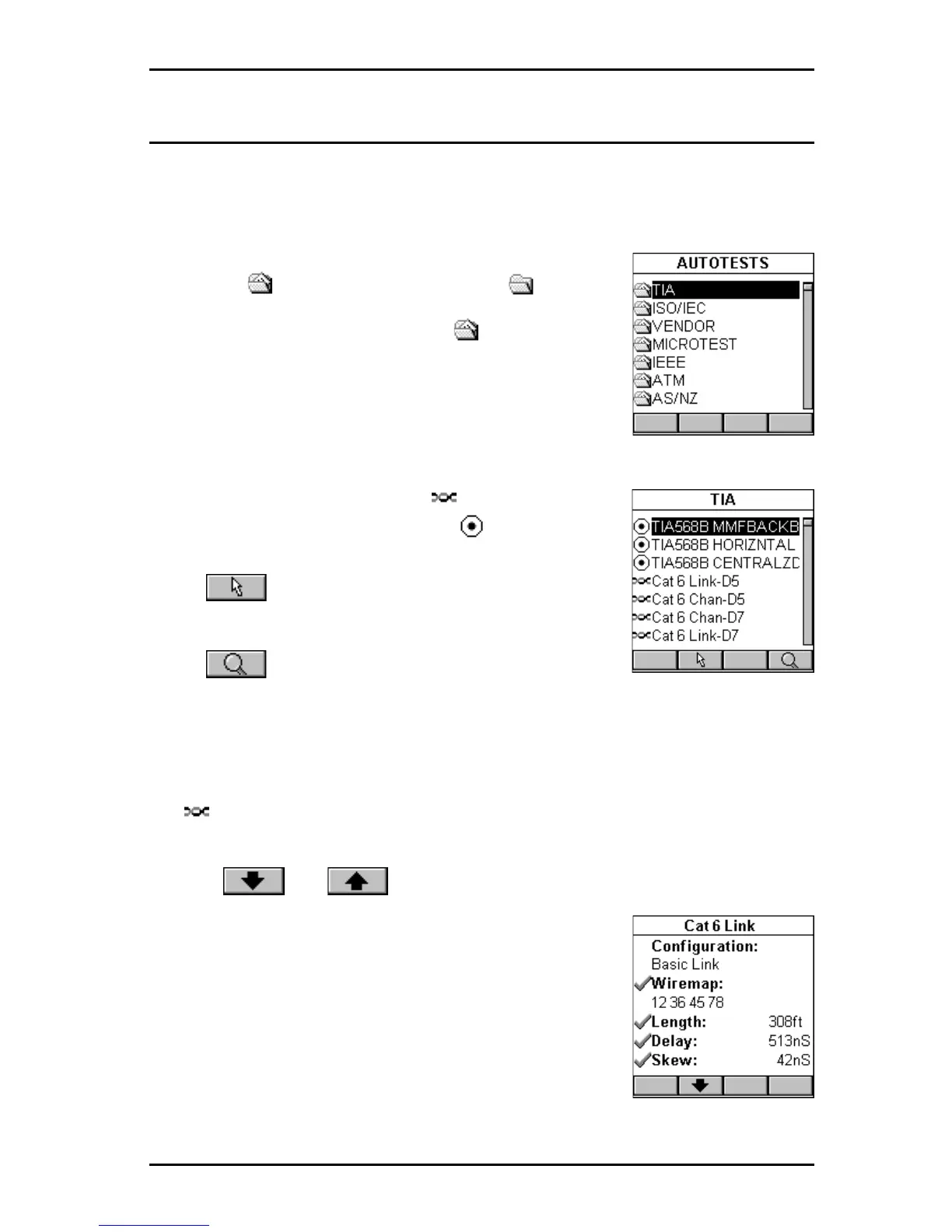

Select Autotests to display the AUTOTESTS screen. It contains a list of
standard Autotest specifications supported by OMNI
Scanner
. Standards
are grouped by TIA, ISO, VENDOR, MICROTEST, IEEE, ATM, and AS/NZ.
If there are Autotest specifications in a folder, it will
appear full , otherwise it will be empty .
Highlight a folder containing items and press
ENTER to display the list of Autotests contained in
that folder.
Use the é or ê arrow key to highlight a specific
Autotest.
Copper tests are marked with a twisted pair icon.
Fiber optic tests are marked with a fiber icon.
Press (Set Default) to select it as the Autotest
to run.
Press (Detail) to review the Autotest’s limits.
Viewing Details for Copper and Fiber Autotests
For twisted pair cabling the Autotest Detail screen consists of four
pages.
Use the and function keys to browse through the pages.
The screen titles show the standard being used to set
the limits (e.g. Cat 6 Link).
The first page displays the Configuration of the
Autotest (Basic Link, Channel, or Permanent Link).
Wiremap, Length, Delay and Skew limits are also
displayed. The Wiremap numbers show the pairs that
are being tested.
