OMNIScanner User Guide
One Jumper Reference Method
This method is used when the link includes:
• the loss of one connection at the near end cross connect
• the loss of one connection at the far end cross connect/outlet
• the loss of the cable plant
TIA/EIA -568-A, ISO 11801, and IEEE 802.3 (100 Base-X, 1000Base-X)
specify the one jumper method.
Note: This method is called ‘Method B’ in TIA-526-14A and ’Method A.1’
in TIA-526-7.

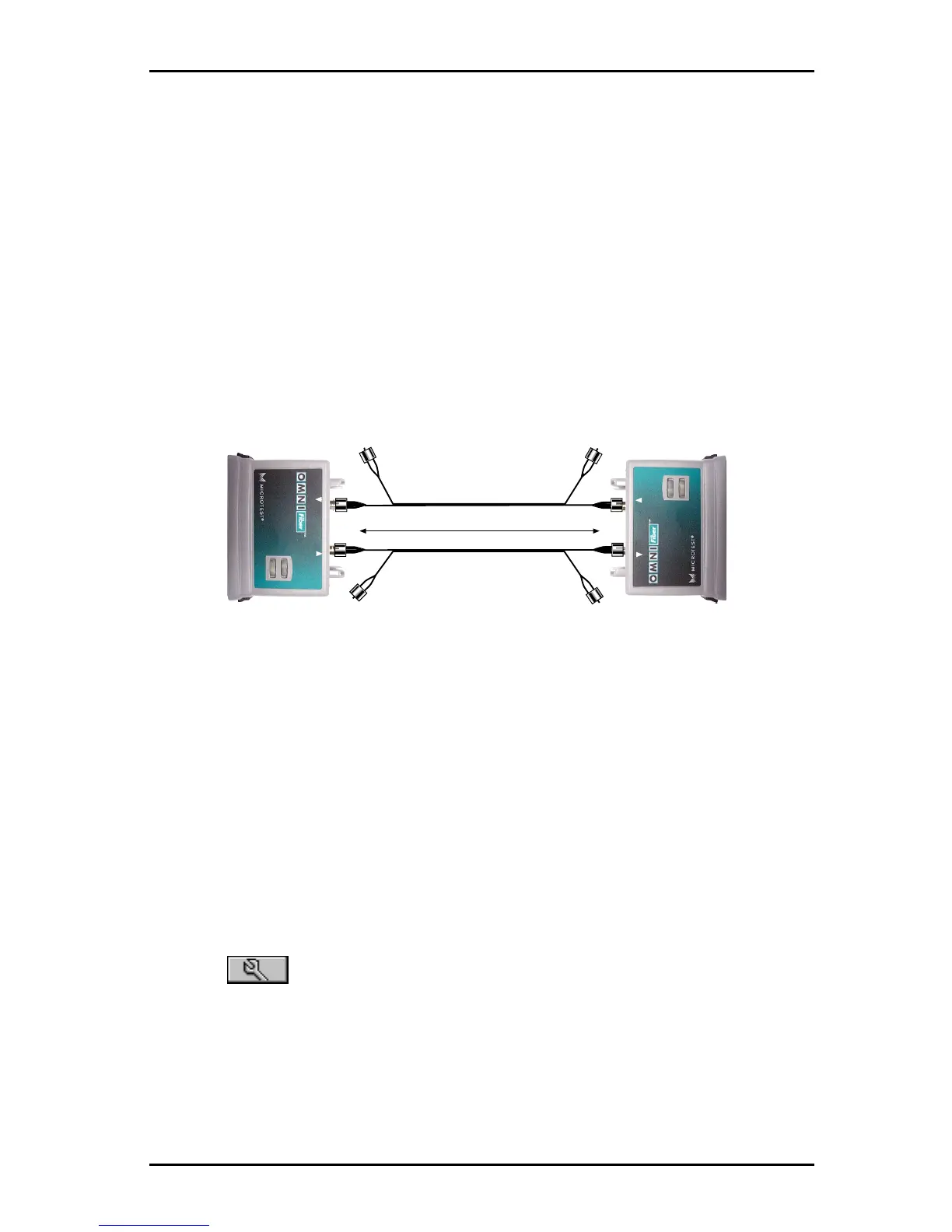

1. Connect one end of a black launch cable to the TX (transmit) port of the
fiber adapter that is attached to OMNI Scanner .
2. Connect the other end of that black launch cable to the RX (receive) port
of the fiber adapter that is attached to OMNI Remote .
3. Leave the two white fiber connectors dangling and unconnected.
4. Connect one end of another black launch cable to the TX (transmit) port
of the fiber adapter that is attached to OMNI Remote .
5. Connect the other end of that black launch cable to the RX (receive) port
of the fiber adapter that is attached to OMNI Scanner .
6. Leave the two white fiber connectors dangling and unconnected.
7. Press (Setup) to open the SETUP screen and then select Set
Reference to set the reference.
8. Disconnect only the following two ends: OMNI Fiber Main RX (receive) and
OMNI Fiber Remote RX (receive). OMNI Fiber Main TX and OMNI Fiber
remote TX stay connected!
9. Connect the white fibers to the appropriate RX ports.
RX
TX
850 nm
1300/1310 nm
RX
TX
850 nm
1300/1310 nm
2 m Launch Cables
