indicate the Method used to set the reference.
(See Chapter 8 - Fiber Optic
Reference for further information.)
When dual fiber is measured, arrows ▲▼ at the top of the screen point out
the direction of the light. The arrows also indicate the fiber that the
(PASS) or (FAIL) result is for.
The number of Connectors and Splices is shown at the bottom of the screen
if the Autotest loss criteria is formula based.
(See Appendix C for further
information.)
Press or to toggle between the results for OMNI
Scanner
and OMNI
Remote
.
Press ESC to return to the PROJECT NAME screen.
Press ESC to return to the RESULTS screen.

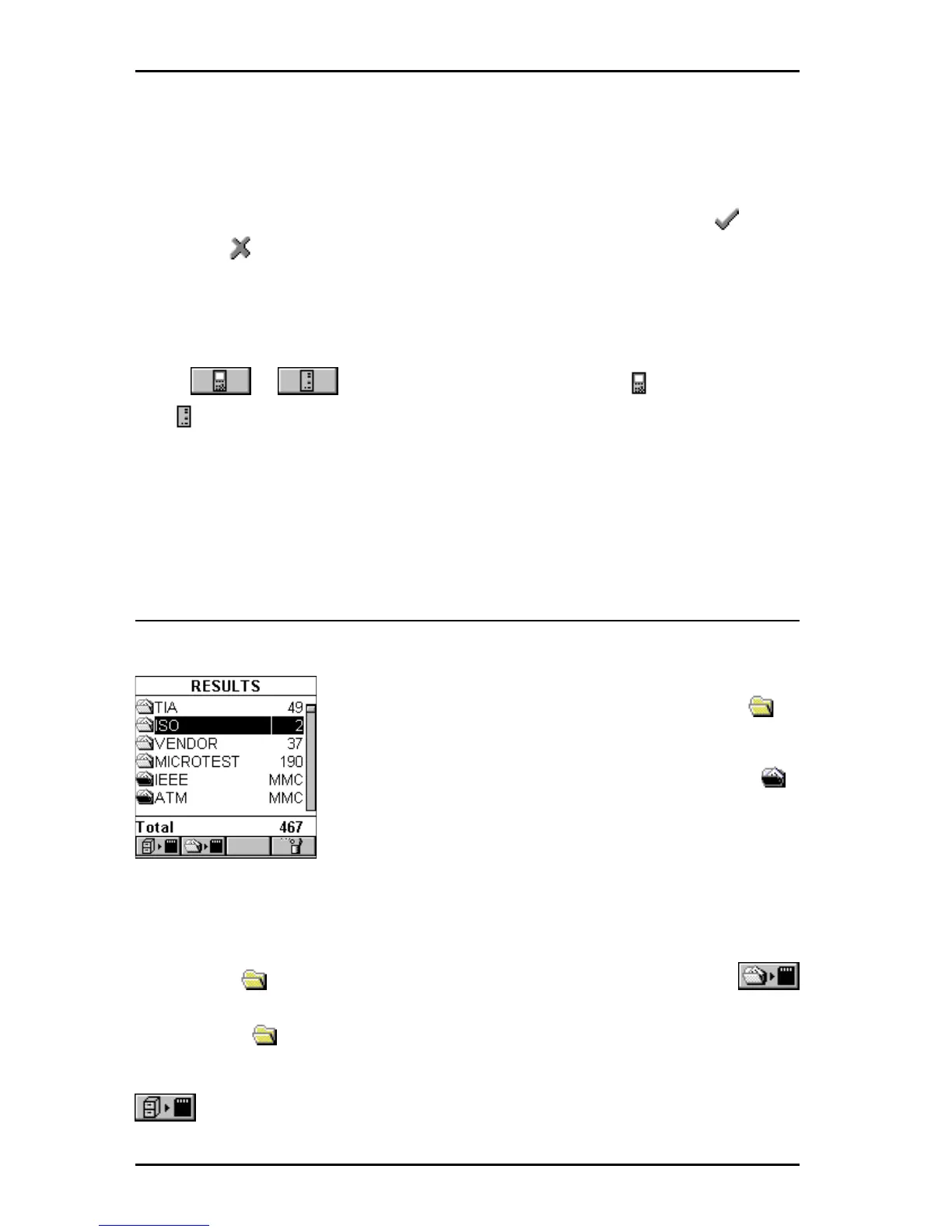

Results stored on a MultiMediaCard
OMNI
Scanner2
allows you to view results that are stored on the MMC.
Internally stored results are identified by a light
Project folder.
Results stored on MMC are identified by a black
Project folder.
Viewing is accomplished as described above.
When a MultiMediaCard is inserted, OMNI
Scanner2
will allow you to copy
results to the portable card.
To copy the test result(s) contained in one project to the MMC, highlight the
appropriate Project folder in the RESULTS screen and then press
(Copy Project to MMC). This function is available only for Projects in the
internal flash (light Project folder).
To copy all internal Projects that are listed in the RESULTS screen, press
(Copy Results to MMC).
