Microtest OMNIScanner2 User Manual

2 - 11
OMNIScanner User Guide

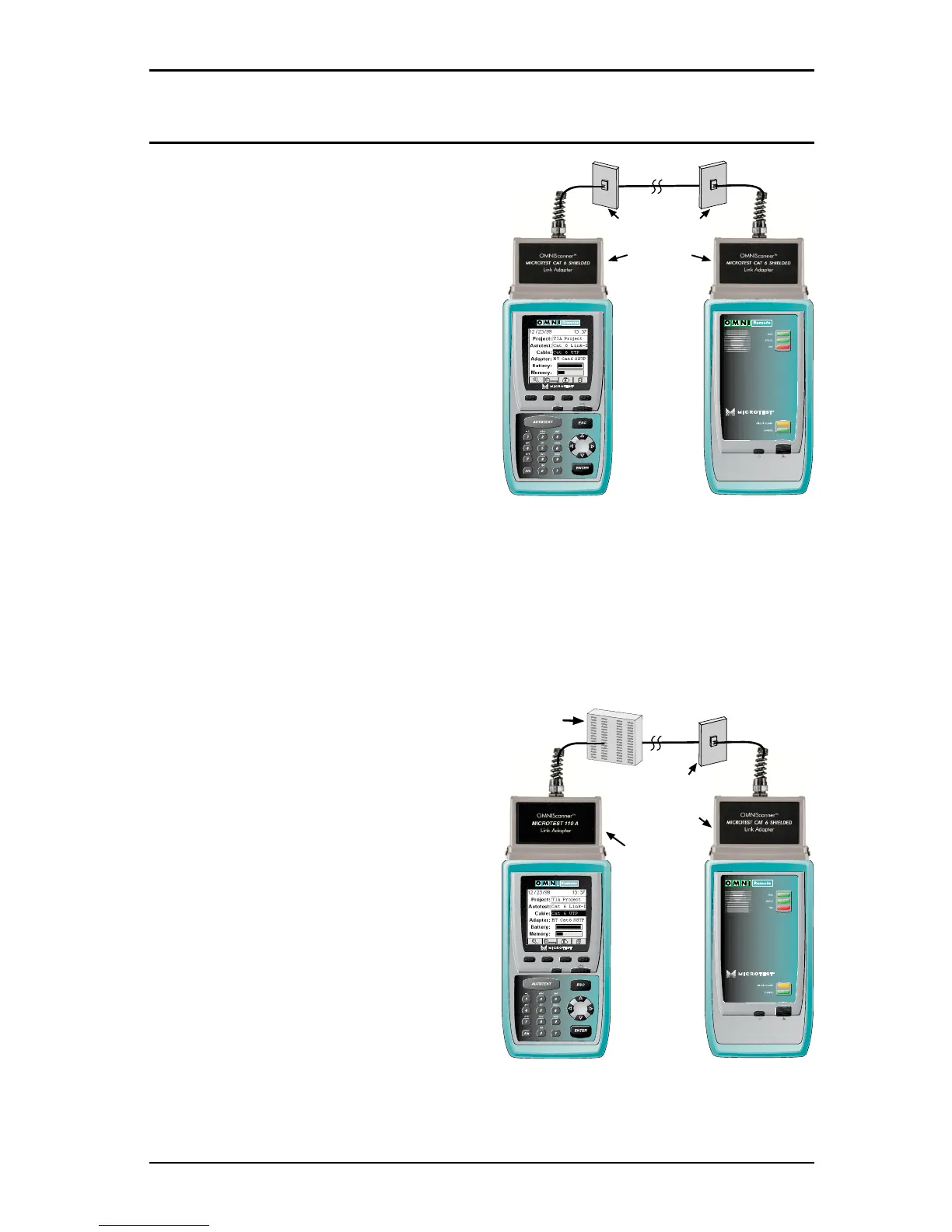

Typical Test Configurations for Twisted Pair Cabling
Basic Link
The graphic shows the connection of
OMNI Scanner to a Modular 8 Jack in
the wiring closet, and OMNI Remote
to a Modular 8 jack in the work area.
Use the supplied MICROTEST Link
Adapters at both ends of the link to
attach OMNI Scanner and OMNI-
Remote to the Modular 8 jacks.
Basic Link with 110 Block and Modular 8 Jack
The graphic shows the connection of OMNI Scanner to an IDC (110) block
in the wiring closet, and OMNI Remote to a Modular 8 jack in the work area.
The Punch Down Block Adapter kits
MICROTEST 110 A Link Adapter
and MICROTEST 110 B Link
Adapter are available (as optional
accessories) to interface the OMNI-
Scanner and OMNI Remote with IDC
(110) punch-down blocks.
Use the MICROTEST 110 A or B
Link Adapter to attach OMNI-
Scanner to the 110 Punch Down
block. At the other end of the link,
use the MICROTEST Link Adapter
to attach OMNI Remote to the
Modular 8 jack.
Modular 8
(RJ-45)
Link Adapter
Modular 8 Jack
Modular 8
Link Adapter
Modular 8 Jack
110 Block
110 A
Link Adapter
