OMNIScanner User Guide
5 - 12
Press (Pairs) to view PSNEXT graphs for other pairs.
Press ESC to exit the POWER SUM NEXT screen.

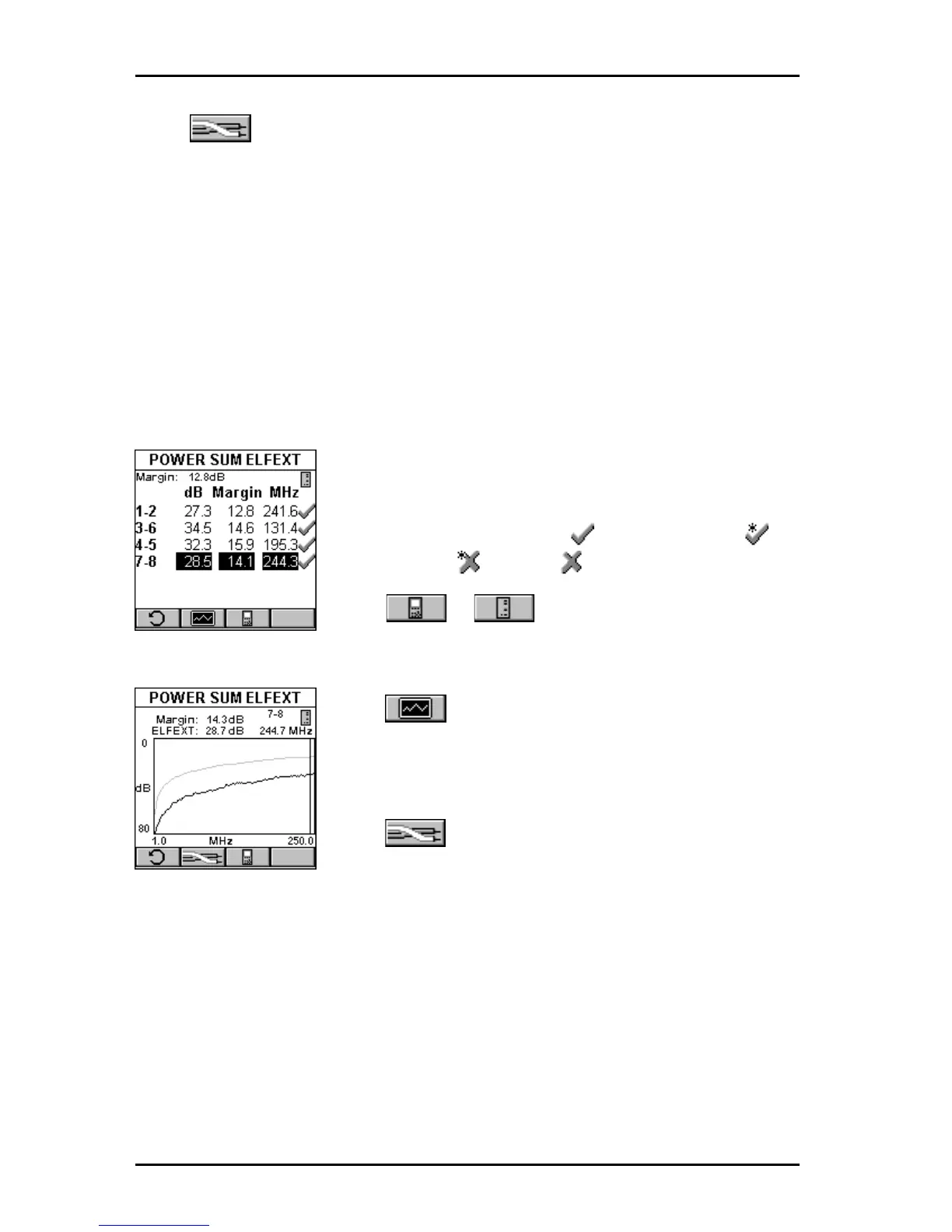

Power Sum ELFEXT
Power Sum ELFEXT is calculated from the summation of the individual
ELFEXT effects on each pair by the other three pairs.
In the POWER SUM ELFEXT screen, the worst case margin for all near and
far pairs is shown at the top of the screen.
The pairs are displayed in the column on the left side,
followed by the PSELFEXT in decibels (dB), the
margin/limit, and the frequency. The result for each
pair is tagged with a PASS , Marginal PASS ,
Marginal FAIL , or FAIL indicator.
Press or to toggle between the
PSELFEXT results for OMNI
Scanner
and OMNI-
Remote
.
Press (Graph) to display the PSELFEXT graph
for the currently highlighted pair. PSELFEXT is
displayed for the frequency indicated by the cursor
position.
Press (Pairs) to view PSELFEXT graphs for
other pairs.
Press ESC to exit the POWER SUM ELFEXT screen.
