OMNIScanner User Guide
2 - 6

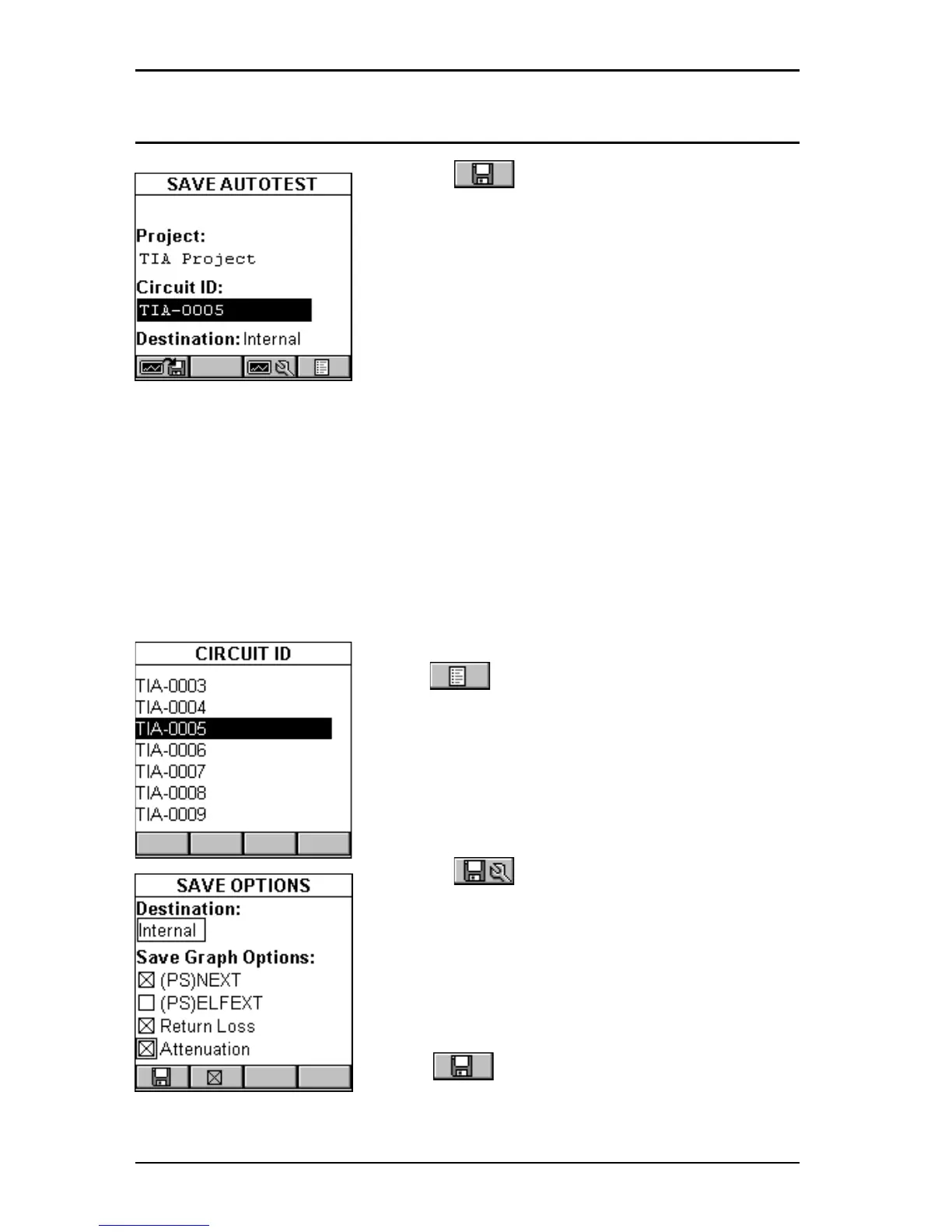

Saving Twisted Pair Autotest Results
1. Press (Save) from the AUTOTEST
screen to open the SAVE AUTOTEST screen,
where the Autotests can be stored into
OMNI Scanner ’s memory.
2. The Project: field contains the name of the
project.
3. To assign a unique name to the Autotest,
enter a Circuit ID into the Circuit ID: field.
Circuit IDs can be setup to automatically increment. (See Chapter 4 -
Setup: Projects: Editing a Circuit ID for further information.)
If an incrementing Circuit ID was created in the PROJECT Setup screen,
the Circuit ID: field will already contain the next available Circuit ID that
can be used as a default.
4. To change the name using OMNI Scanner ’s edit feature, highlight the
field, and press ENTER to initiate the editing mode. (See Chapter 1 -
Introduction: Editing with OMNIScanner for more information.)
5. To change the Name using the list function,
press (List). The CIRCUIT ID screen
opens and displays all Circuit IDs available for
the project. Use the ç or è to quickly scroll
through the pages. Use the é or ê to highlight
a Circuit ID and press ENTER to select it as the
name for the Autotest to be saved and return to
the SAVE AUTOTEST screen.
6. Press (Autotest Save Options) to
open the SAVE OPTIONS screen. OMNI-
Scanner 2: Select the Destination for saved
test results (MMC or Internal) and select or
unselect the graphs to be saved. (See Chapter
4 - Setup: Autotest Save Options for more
information.)
Press (Save) to save the settings and
return to the SAVE AUTOTEST Screen
7. The SAVE AUTOTEST screen’s save function key indicates the
