7 - 3
OMNIScanner User Guide
For Twisted Pair Cabling:

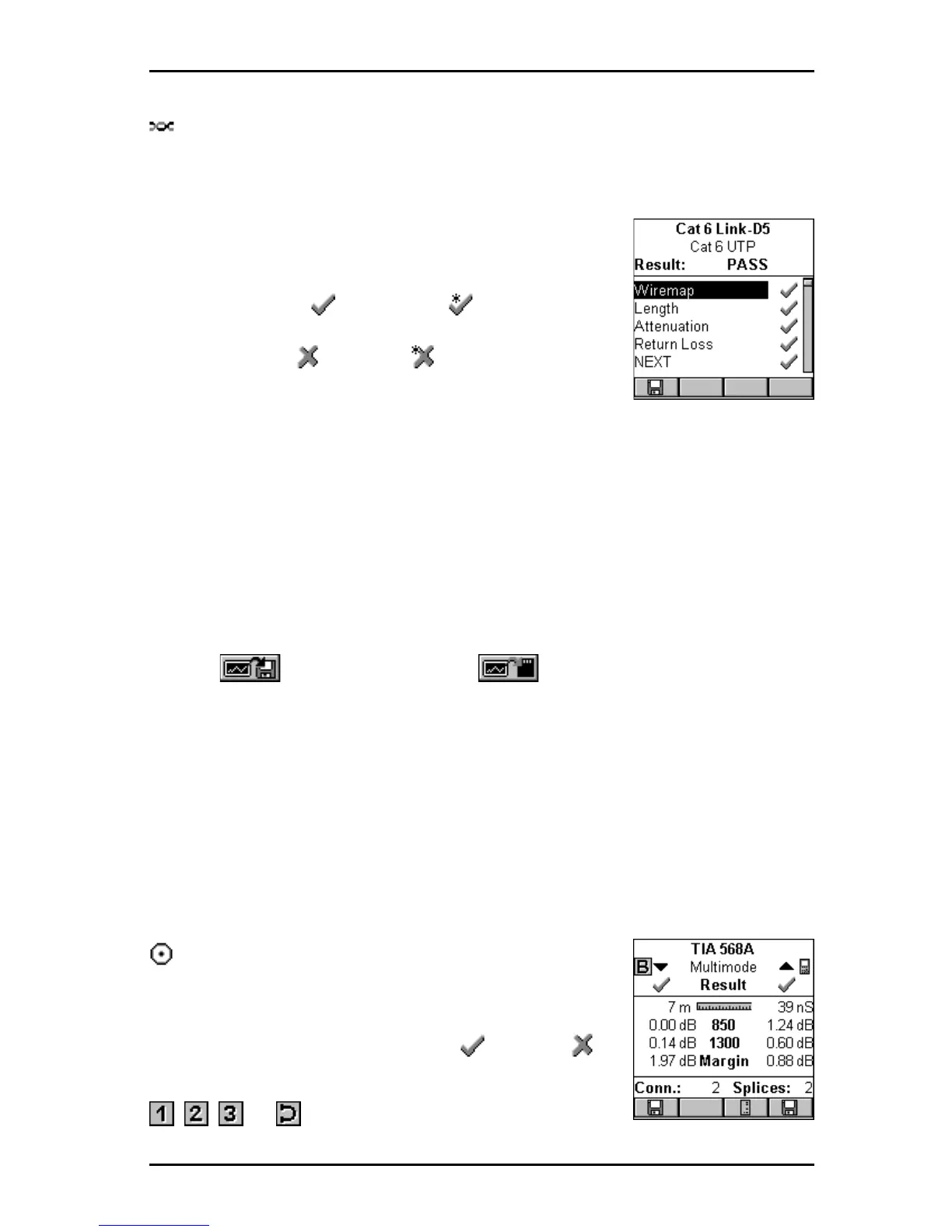

The Autotest Results screen will be displayed. The name of the Autotest,
the cable that was used to run the test, and the overall test result (PASS or
FAIL) are shown.
All measurements that were performed during the
Autotest are listed in the left column. Passed tests
are marked with a (PASS) or a (Marginal
PASS). If a test result did not pass, the test name will
be followed by a (Fail) or a (Marginal FAIL)
symbol.
Note: The list of tests varies depending on the kind of Autotest that was
performed.
(See Chapter 5 - Measurements for detailed information about each mea-
surement screen.)
Use the éê on your keypad to highlight a test.
Press ENTER to open the test result screen for that particular test.
Use the ç or è on your keypad to quickly page through all test results.
Note: If (Save with Graphs) or (Save with Graphs to MMC)
was selected when saving the Autotest, graphs associated with NEXT,
Attenuation, Return Loss, PSNEXT, ELFEXT, ACR, PSELFEXT, and/or
PSACR are available when viewing Autotest results. Only the graphs that
were selected in the SAVE OPTIONS screen will be saved. (See Chapter 4 -
Setup: Save Options for information about selecting graphs to be saved.)
Press ESC to return to the PROJECT NAME screen.
Press ESC to return to the RESULTS screen.
For Fiber Optic Cabling:
The Autotest Results screen will be displayed. The
name of the Autotest, the cable that was used to run
the test, and the overall test result ( PASS or
FAIL) for both fibers are shown.
, , , or (Loopback) are displayed to
