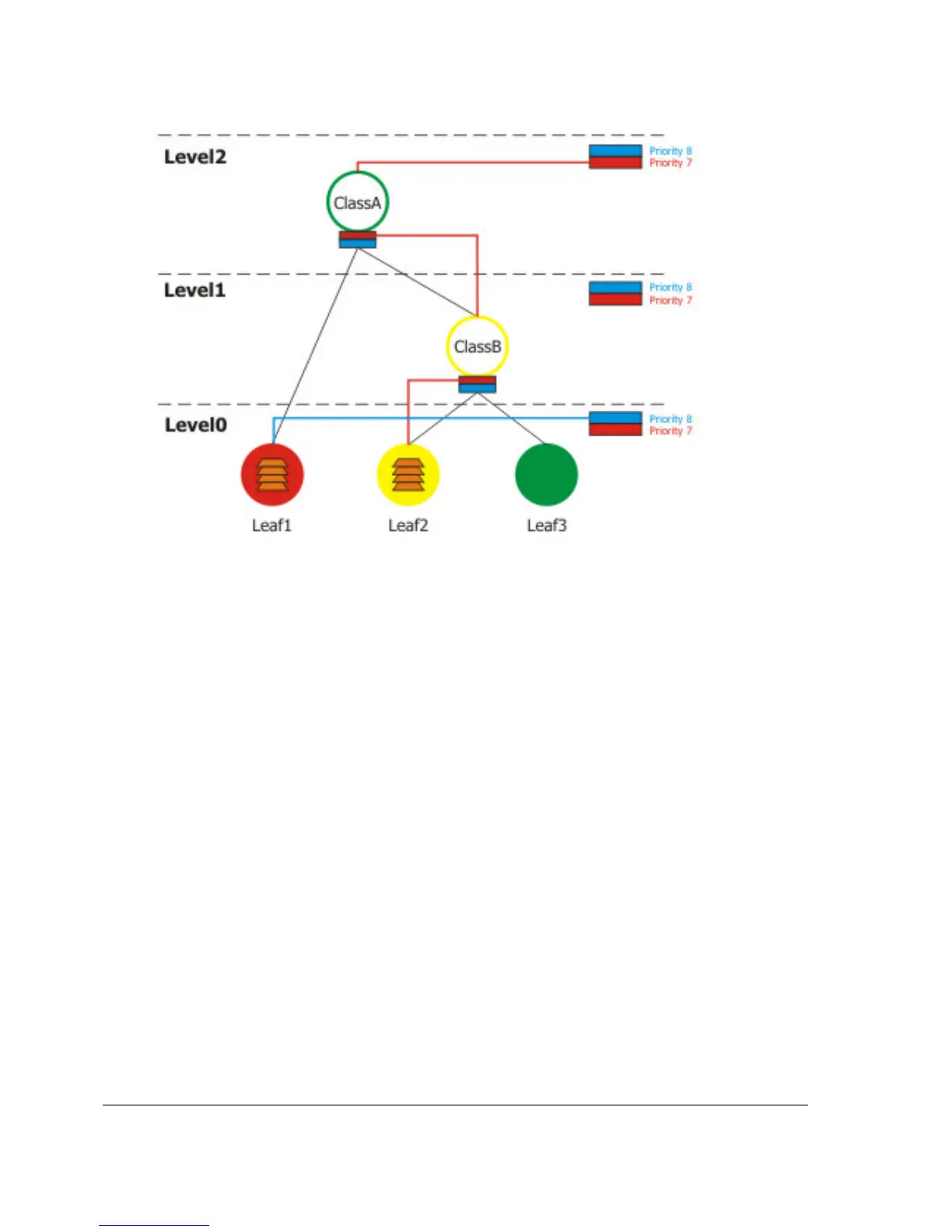

This scenario shows that Leaf1 has reached its max-limit, and cannot even borrow from its
parent (ClassA). Leaf2 has hierarchical reached Level2 and borrows from ClassB which
recursively must borrow from ClassA because it has not enough rate available. As Leaf3 has
no packets to send, the only one class who sends them, is Leaf2.
4. Assume that Leaf2 is borrowing from ClassB, ClassB from ClassA, but ClassA reaches its
max-limit (2Mbps).
