2.4.3 Right View
2.4.4 Bottom View
2.5 Modular Rack
The Modular Rack is used to connect an N1 and an external parameter module as well as providing bed rail
mounting capability. It can also be connected to the Dock.
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)

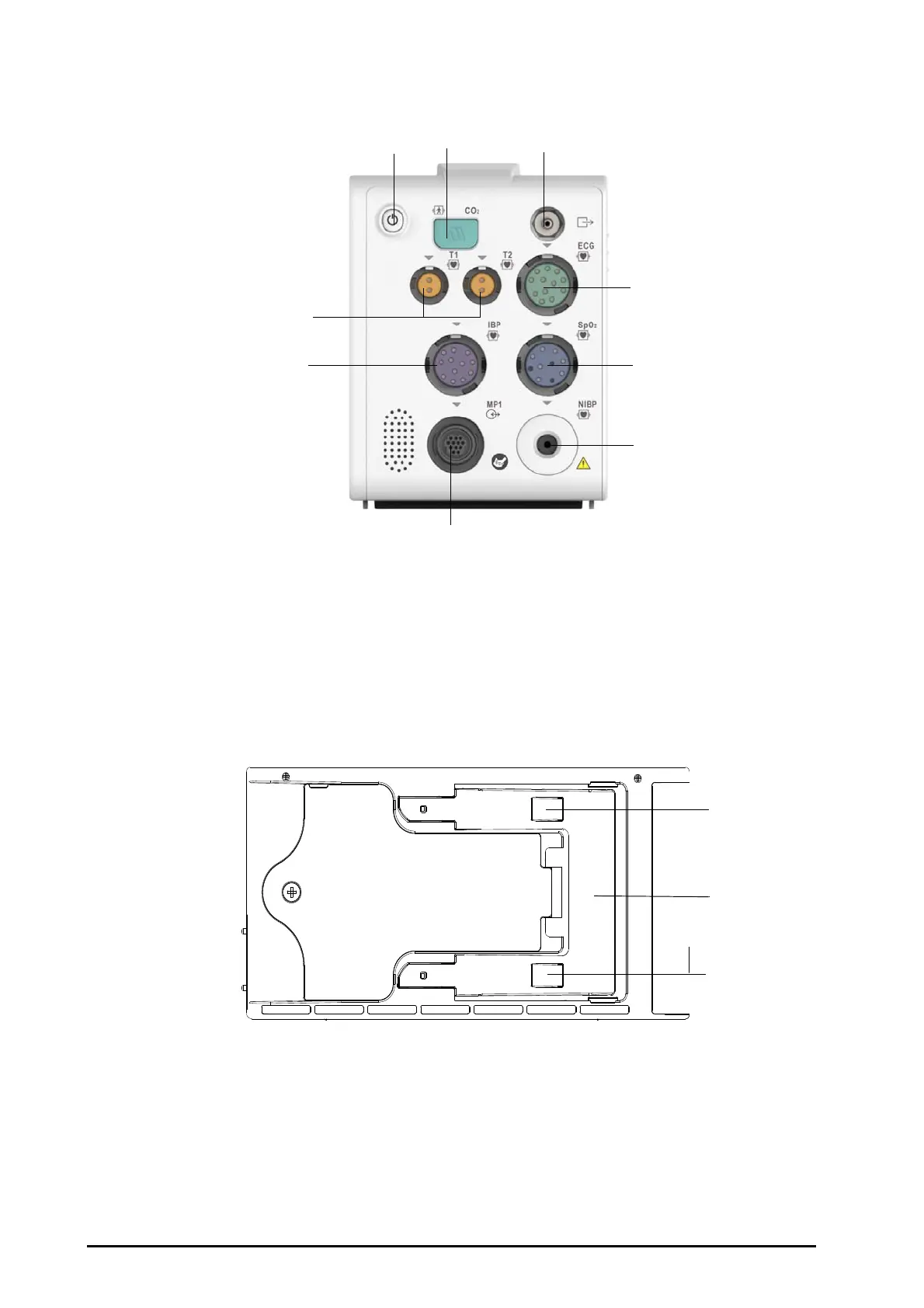

(1) Power switch (2) Sample line connector for
sidestream CO
2
(3) Gas outlet
(4) ECG cable connector (5) SpO
2
sensor connector (6) NIBP cuff connector
(7) Multifunctional connector: outputs analog ECG, IBP and defib synchronization
signals.
(8) IBP cable connector
(9) Temperature probe connector
(1)
(2)
(1)
(1) Clip: fastens the N1 when N1 is in use with the host monitor, Dock or Modular Rack.
(2) Latch: locks the N1 when the N1 is in use with the host monitor, Dock or Modular Rack. Pressing here releases
the N1 so that the N1 can be removed from the host monitor, Dock or Modular Rack.
