2 - 10 BeneVision N1 Patient Monitor Operator’s Manual

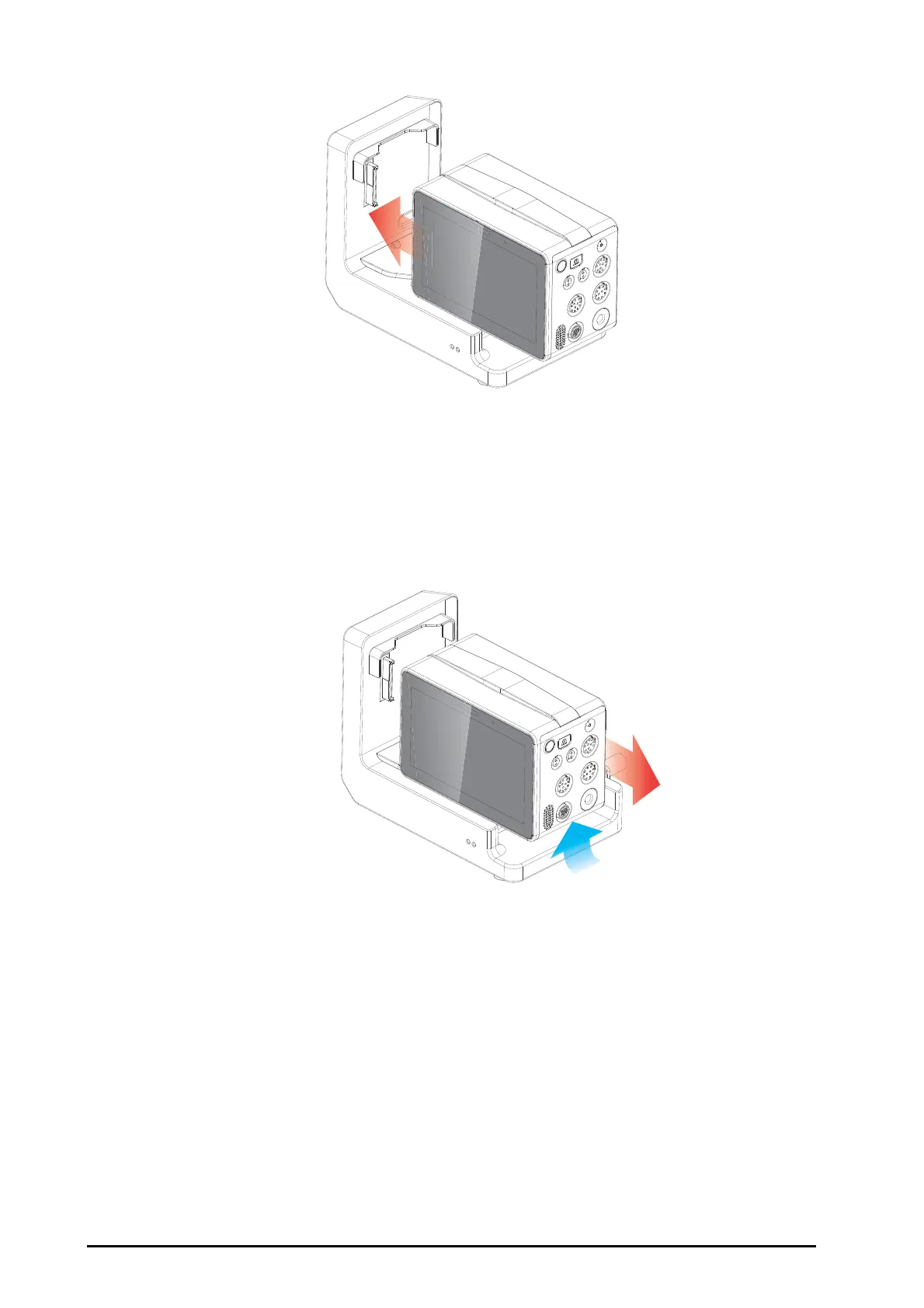

Firmly push the N1 until an audible click is heard indicating that the clip (refer to 2.4.4 Bottom View) engaged the
Dock. To ensure that the N1 is properly connected, try to pull the N1 outward. The N1 has properly engaged the
Dock if it cannot be pulled out.
2.8.6 Removing the N1 from the Dock
To remove the N1 from the Dock, follow this procedure:
1. Press and hold the latch at the bottom of the N1.
2. Pull the N1 out as indicated.
2.9 N1 in Use with a Host Monitor
When the N1 is connected to the BeneVision N series monitor, the N1 works as the parameter module while
BeneVision N series monitor works as the host monitor. For more information, see section 3.7.2 Module Mode.
The N1 can be connected to the host monitor through the following parts:
■ The module rack of the host monitor
■ The Satellite Module Rack (SMR)
■ The Dock
2.9.1 Connecting the N1 to the Host Monitor through the Module Rack
To connect the N1 to the module rack of the host monitor, follow this procedure:
1. Insert the N1 to the host monitor’s module rack. Firmly push the N1 until an audible click is heard indicating
that the clip (refer to 2.4.4 Bottom View) engaged the module rack.
