2 - 8 BeneVision N1 Patient Monitor Operator’s Manual

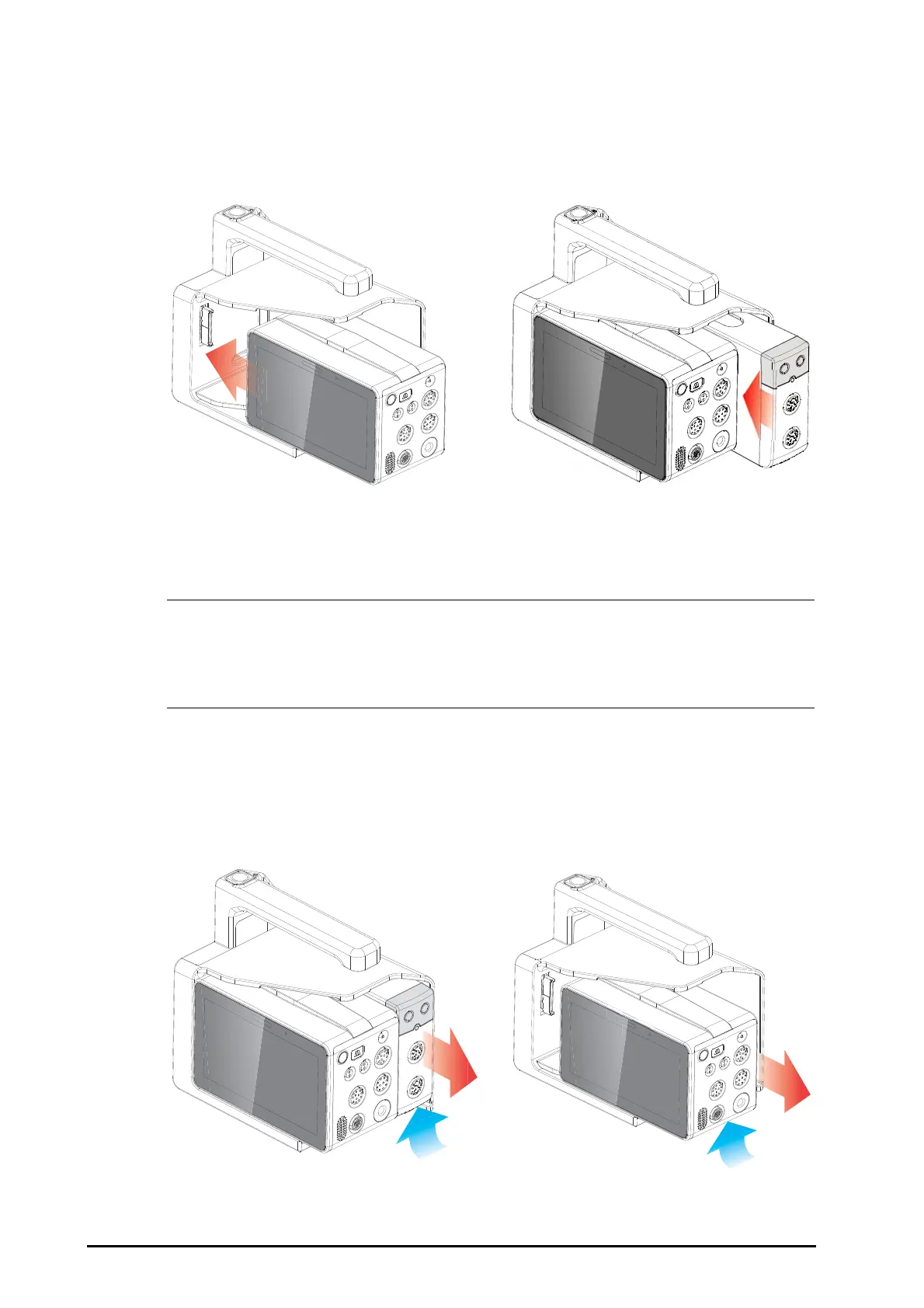

2.8 Installation
2.8.1 Installing the N1 or External Parameter Module into the Modular Rack
Install the N1, and an external parameter module if needed, to the Modular Rack as indicated below:
Firmly push the N1 or the external module until an audible click is heard indicating that the clip (refer to
2.4.4 Bottom View) engaged the Modular Rack. To ensure that the N1 or the external module is properly
connected, try to pull the N1 or the external module outward. The N1 or the external module has properly
engaged the Modular Rack if it cannot be pulled out.
NOTE
• To prevent the N1 or the external module from falling out of the Modular Rack, after inserting the N1
or the external module into the Modular Rack, always check that the N1 or the external module
properly engaged the Modular Rack.
• When the external module is properly installed, it should be further fasten to the Modular Rack with
the lock at the bottom of the module to ensure the engagement.
2.8.2 Removing the N1 or External Parameter Module from the Modular Rack
To remove the N1 or external parameter module, follow this procedure:
1. Press and hold the latch at the bottom of the N1 or parameter module. If the external module is locked to
the Modular Rack, unlock it first.
2. Pull the N1 or parameter module out as indicated.
1
2
1
2
