Special Imaging Modes
11-10

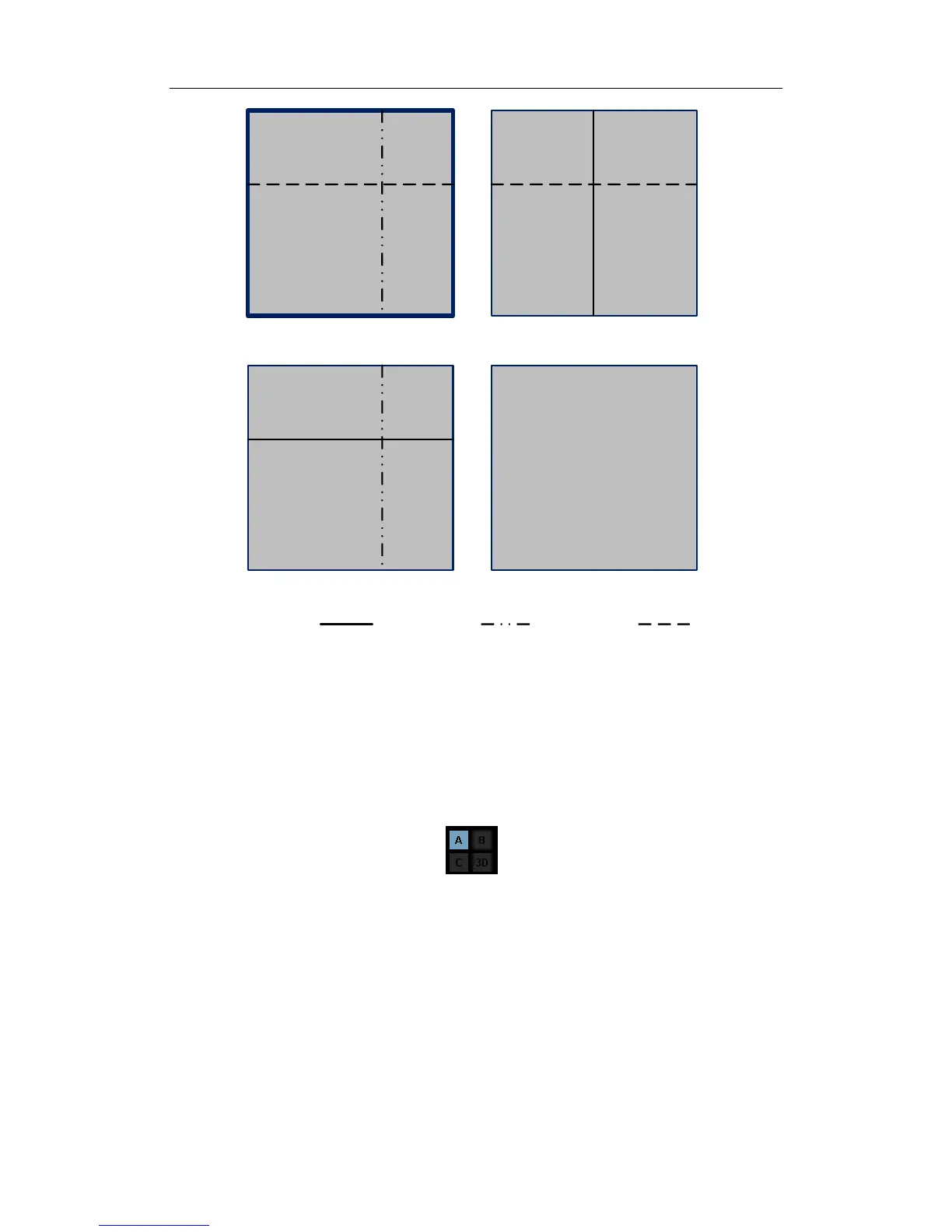

DC
BA
Section B Section CSection A
E.g. select A as the current window and roll the trackball, section lines (indicate the position of
A) in the B and C window move, and image in A window changes.
NOTE:
1. In actual system displaying, different colors of the window box and the section line is
used to identify the section A, B and C. For example, the color of window A is blue, so
the color of the section lines (representing the plane displayed in the window A)
displayed in the other two windows is blue as well. Here, three types of line are used.
2. In actual display, the current window’s icon is highlighted, e.g., the icon as follows
shows that A window is the current window.
A, B, C section images are illustrated as the following sections of 3D image.
