ZS3 Service Manual Page 137 of 295
5. Slide printer forward to its mounting position in the bracket. (Mounting holes in
bracket will align with threaded holes in bottom of printer – in centers of round
pads.

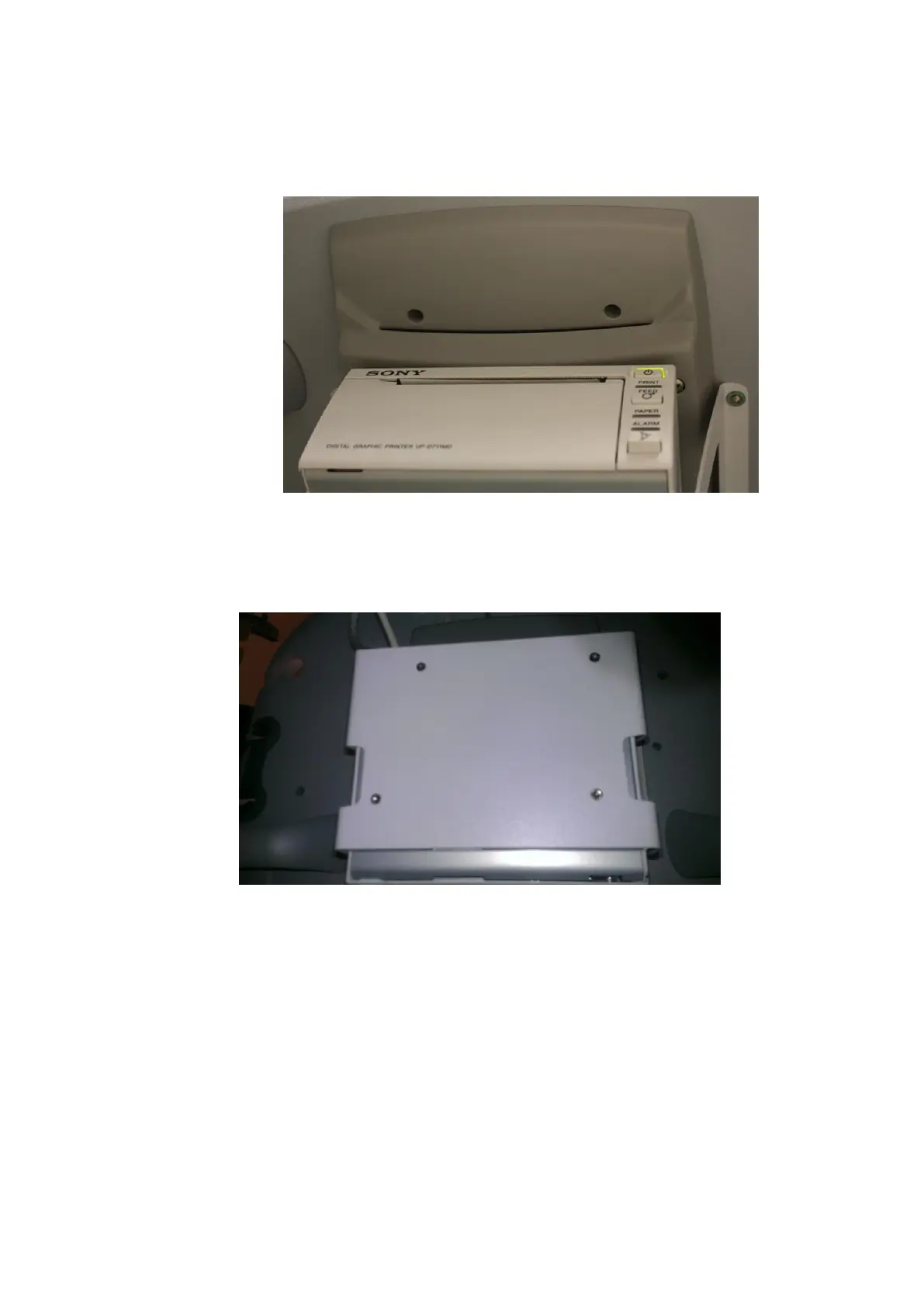

Figure 14.4-ZS3
6. Using a Philips screwdriver, install the four (4) 33215-00 flat head screws
(provided in the kit), through the holes in the mounting bracket and into the four
threaded holes in the printer, as shown below.
Figure 14.5-ZS3
7. Dress printer cables up inside the printer bracket and secure with the cable-tie
(30133), as shown below
