Mindray Zonare ZS3 Service Manual

ZS3 Service Manual Page 140 of 295

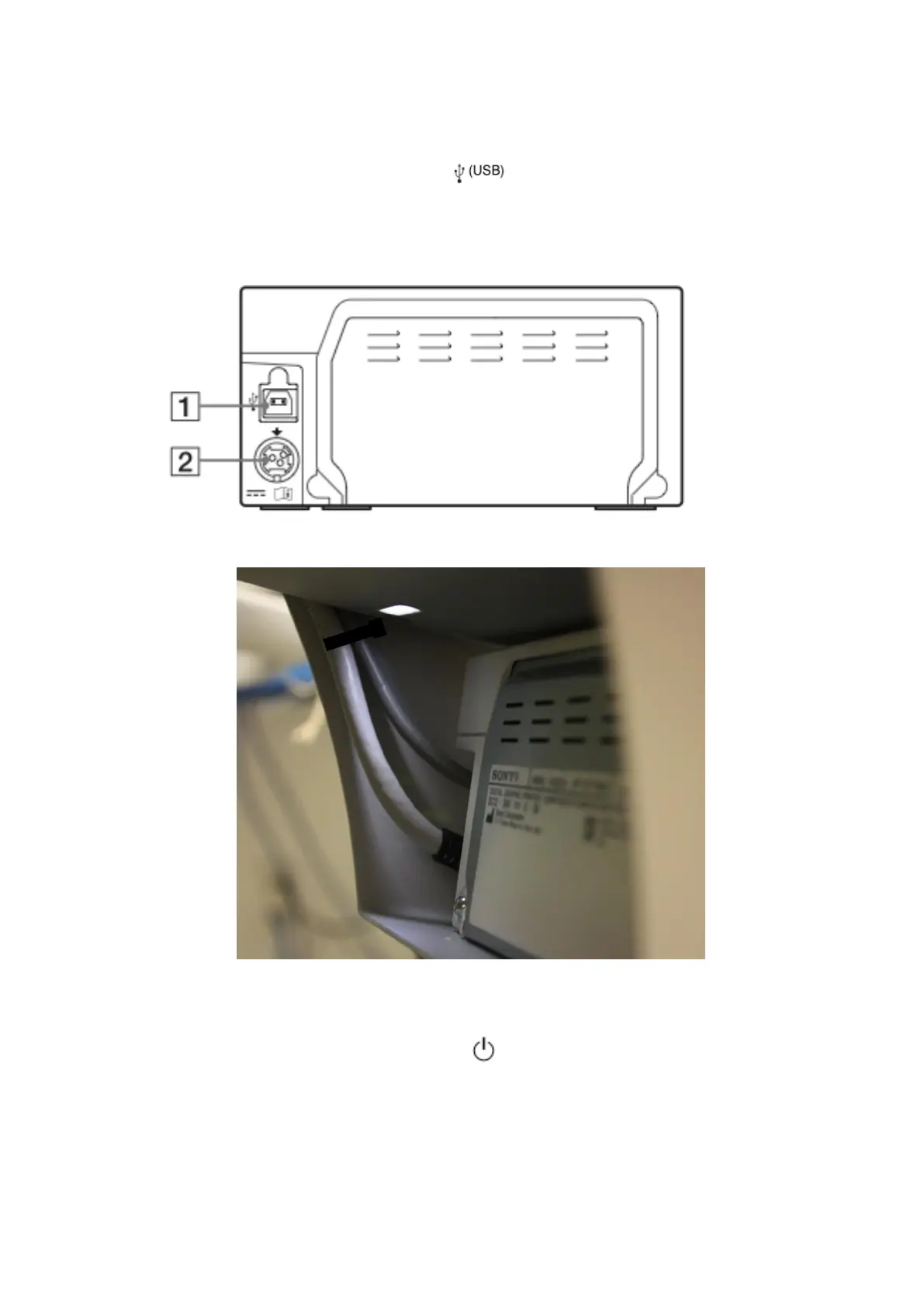

Setup Procedure
1. Connect the USB cable with the symbol facing up into the back of the
printer.
2. Connect the DC power cable in to the back of the printer.
3. Secure the cables to the printer bracket with the zip tie PN: 30133 (as shown)
Figure 14.8-ZS3
4. Power-On the system.
5. Turn the printer on by pressing the button.
6. Press and hold the Open button to extend the paper tray.

Mindray Zonare ZS3 Specifications

General

Brand	Mindray
Model	Zonare ZS3
Category	Diagnostic Equipment
Language	English
