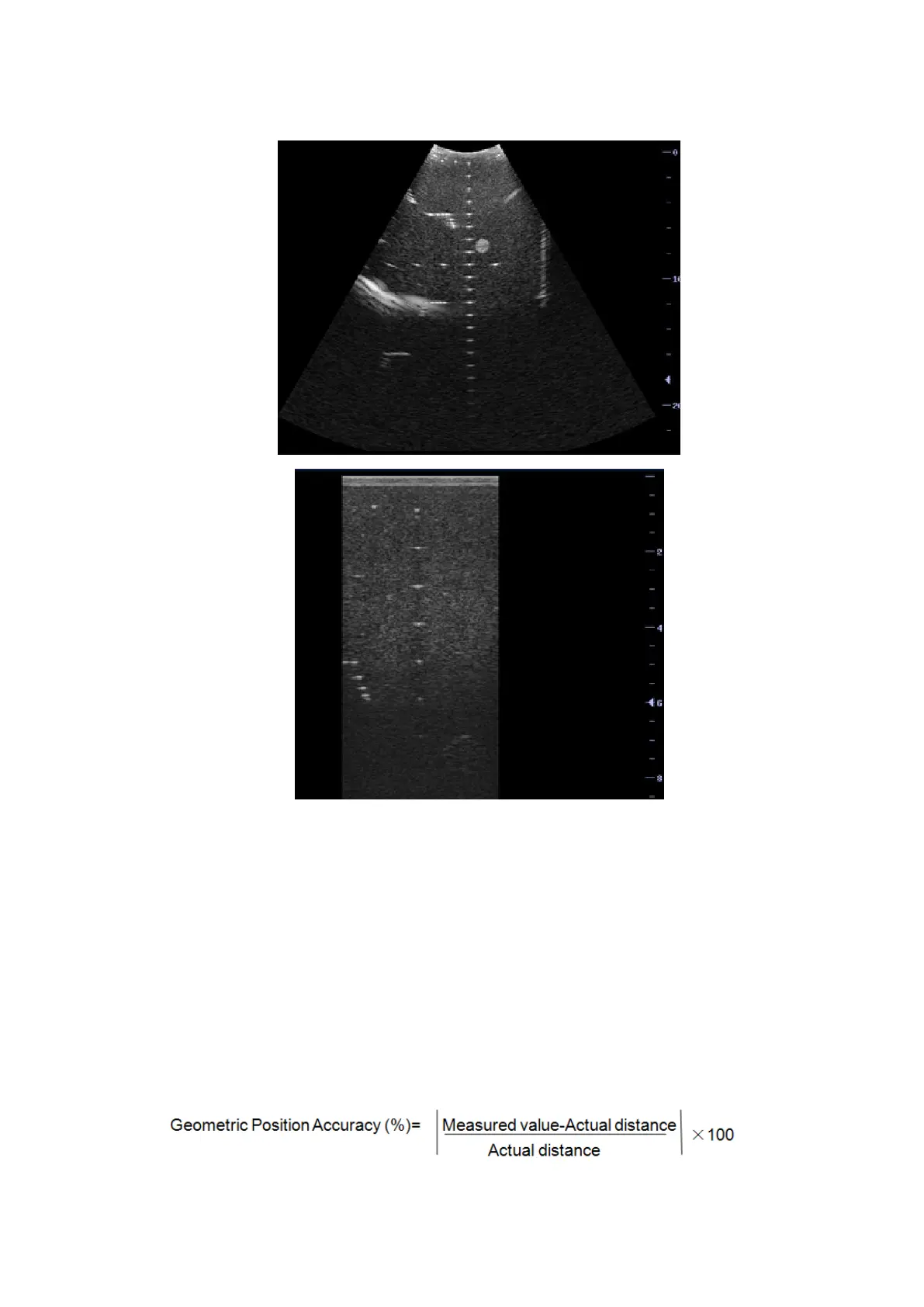

As shown in figure below.
 Geometric positioning accuracy
Longitudinal geometric positioning accuracy
Test Steps:
1. Cover the scan surface of the phantom with water or ultrasound gel. Gently
contact the probe lense with the scan surface.Scan the phantom to the
longitudinal testing targets.
3. Adjust parameters like gain, dynamic range and TGC to minimize the background
noise and display the target image clearly.
4. Measure the distance marks on the longitudinal target line by using the
measurement caliper.
5. Calculate the accuracy using the formula below
