ZS3 Service Manual Page 221 of 295

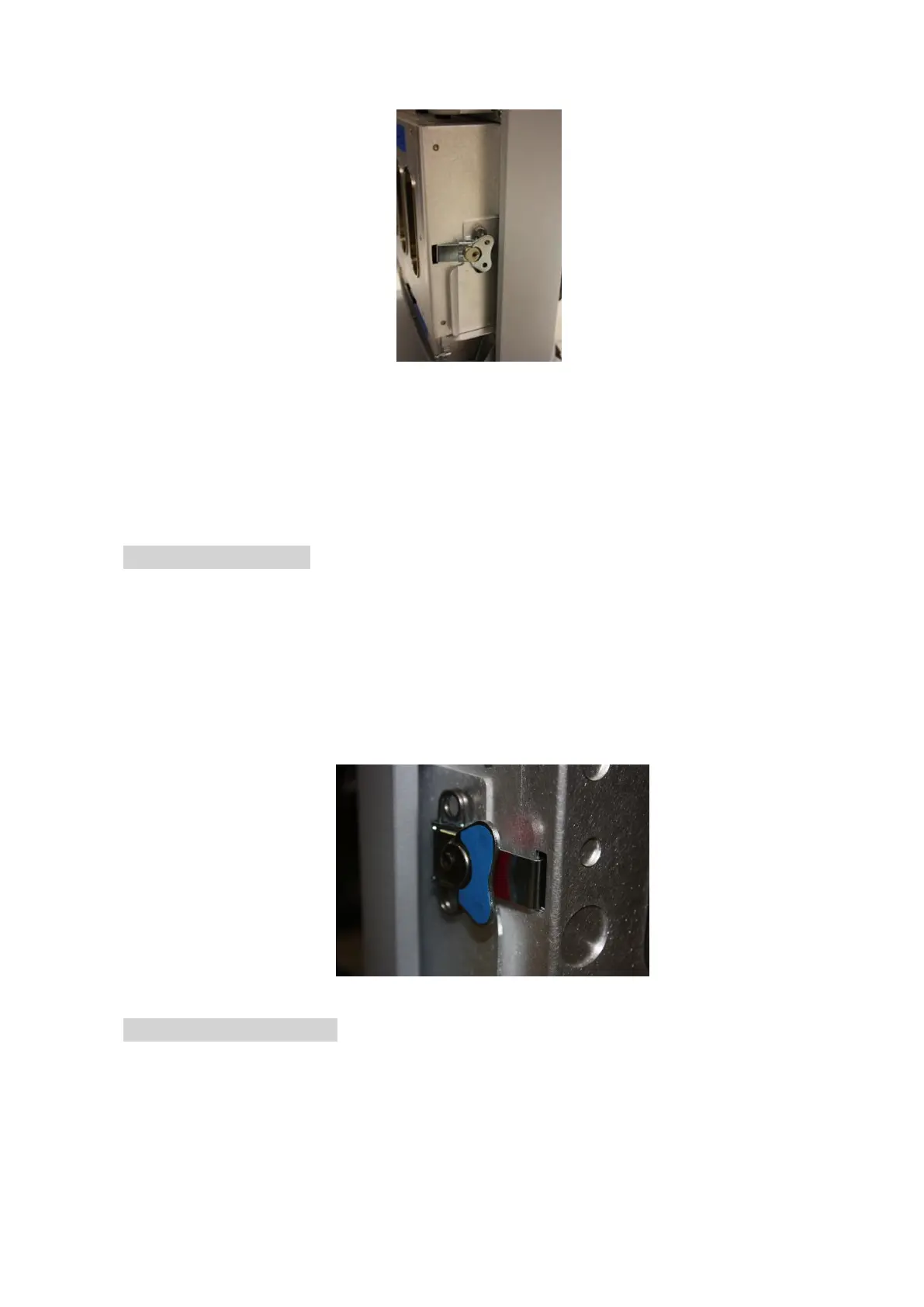

Figure 19.3-ZS3
2. Turn each flap counterclockwise 90° so that each clasp is released. Move each
clasp out of the slots on the sides of the chassis.
3. While holding the handles on the top and bottom of the ZS3 Module, pull until
the ZS3 module is removed completely.
Note: Place ZS3 Module with transducer ports up on a clean, dry surface.
Replace ZS3 Module:
1. Align replacement ZS3 Module so that narrow end is on the bottom and top
surface is below the convex plastic tab.
2. Push ZS3 Module into place.
3. Insert the clasps into the slots and tighten by turning the flaps clockwise.
4. Fold the flaps so that they are parallel to the sides of the ZS3 Module and the
blue sides of the flaps are facing outward.
Figure 19.4-ZS3
Reassemble Cosmetics:
1. Align plastic covering so that transducer slots are aligned with transducer ports.
The concave portion of the plastic covering should be partially covering the
convex plastic tab on the cart.
2. Push plastic covering until it clicks into place.
