ZS3 Service Manual Page 232 of 295

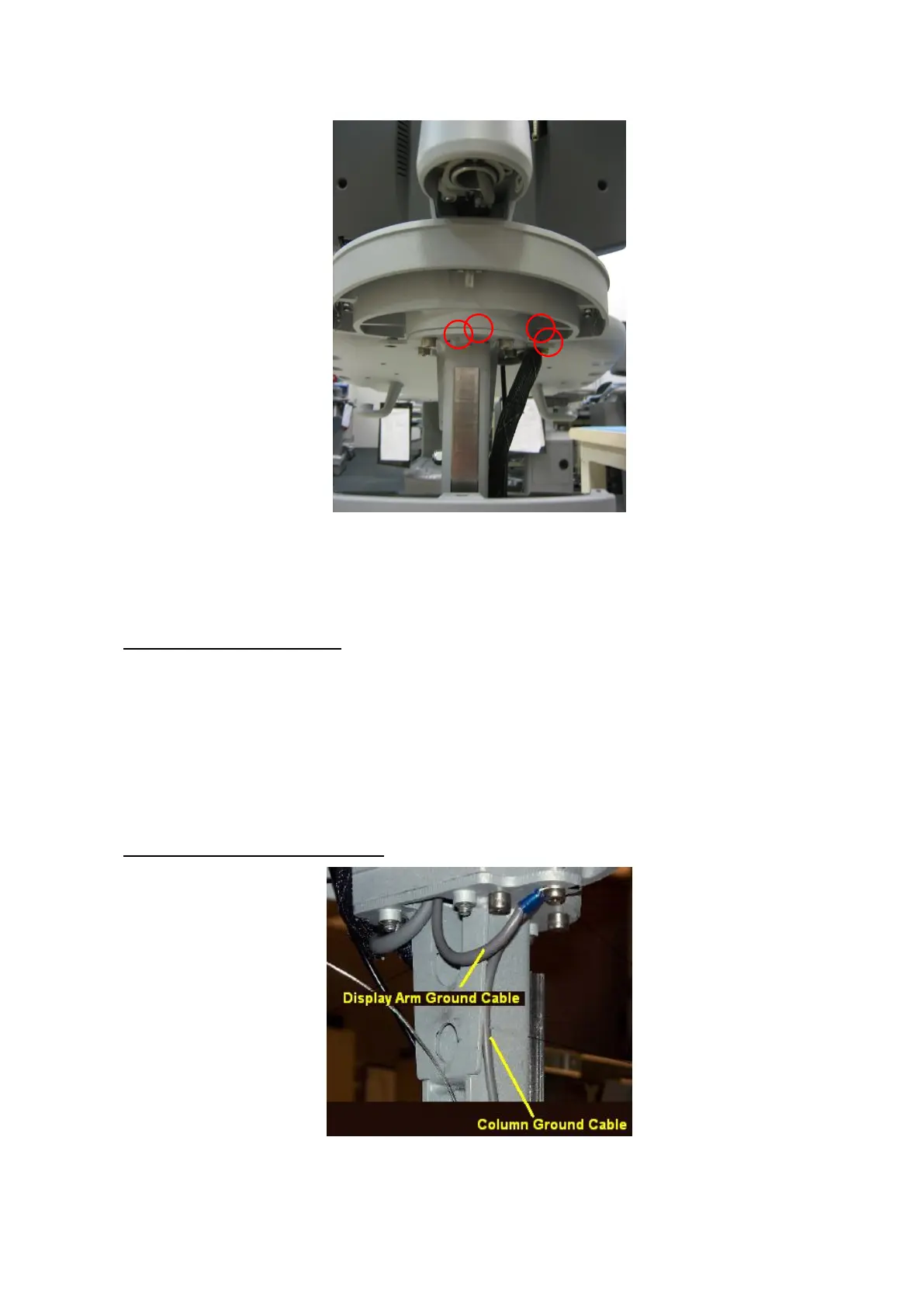

Figure 19.18-ZS3
2. While gently pulling the video cable free from the system, remove arm
assembly.
Display Arm Installation:
1. Route the display cables and ground cable down into the chassis of the system,
allowing adequate slack in the required areas.
2. Secure the cables with tie-wraps, as per locations removed previously during
the disassembly process.
3. Reinstall the four (4) 6mm Allen Head screws to secure the display arm to the
chassis.
Display Cables Reconnection
Figure 19.19-ZS3
