ZS3 Service Manual Page 241 of 295

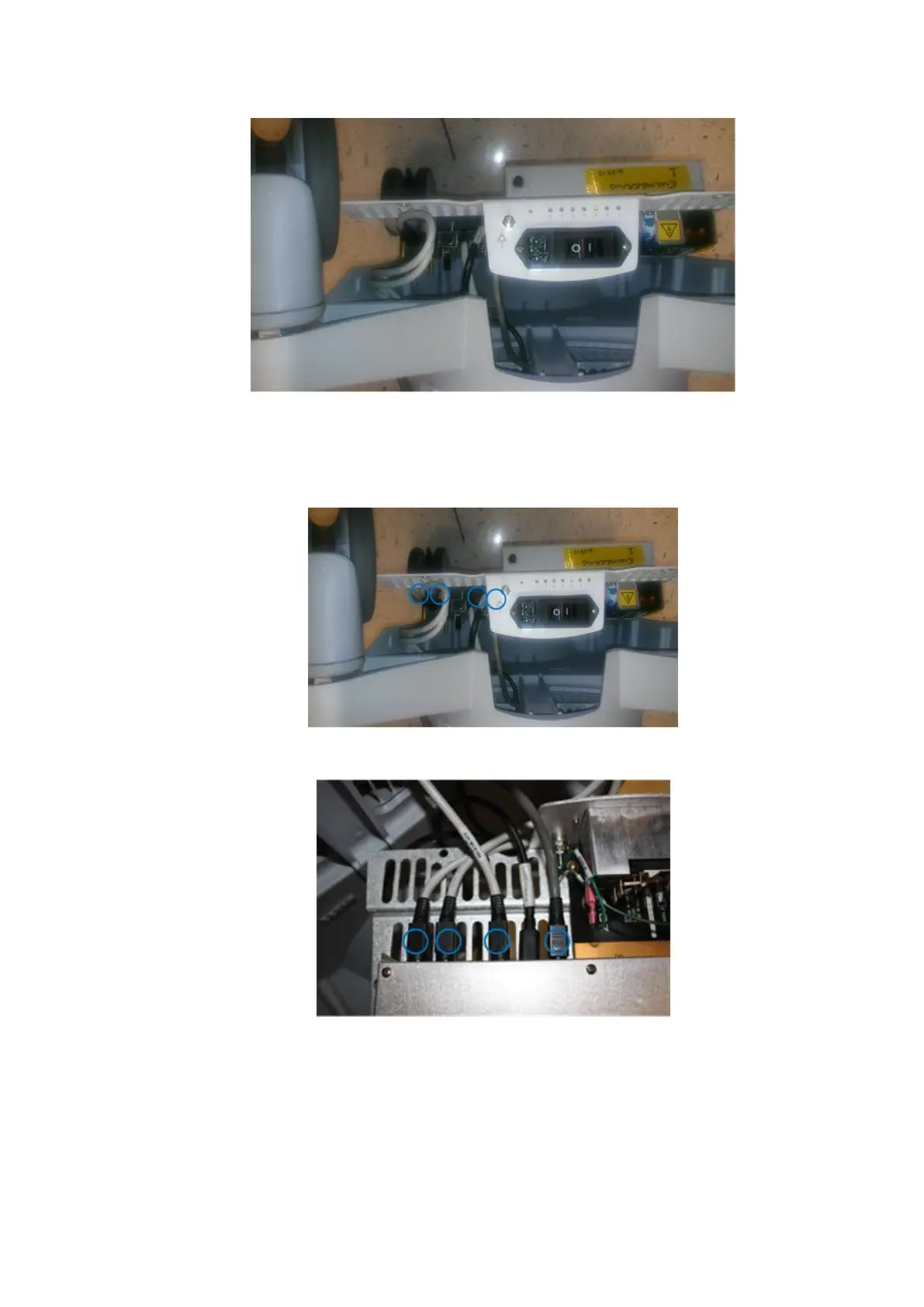

Figure 19.29-ZS3
10. Reach in and disconnect the five (5) cable connections. Note where each cable
connects for reassembly (see figure for assistance).
Figure 19.30-ZS3
Figure 19.31-ZS3
NOTE: The cables marked above have a locking connector. You need to grasp
the hood and slide towards you before pulling connector to disconnect.
