ZS3 Service Manual Page 247 of 295

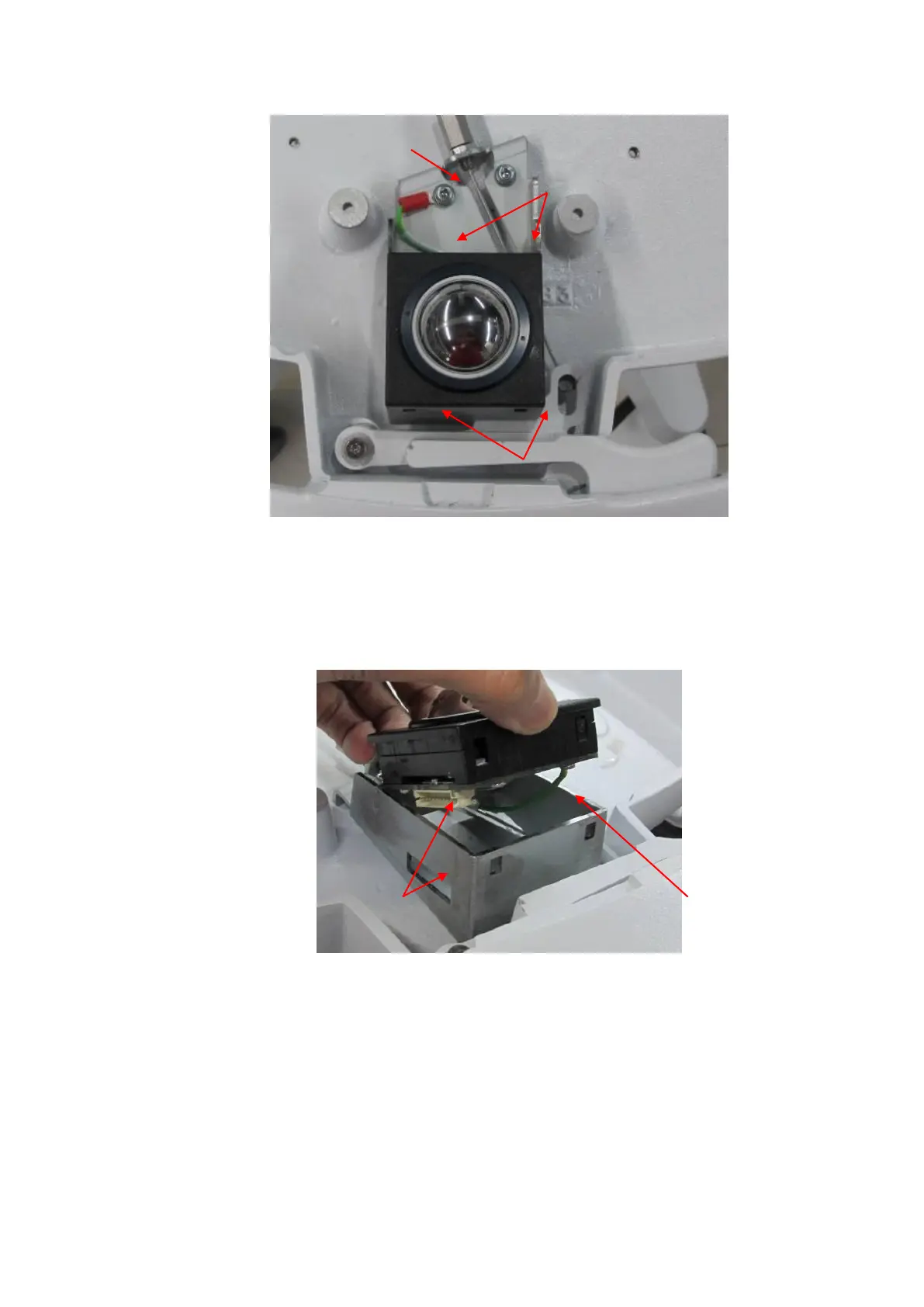

Figure 19.37-ZS3
3. When installing the trackball, lead the grounding cables through the bottom gap
of the metal plate, align the socket interface with the side opening of the metal
plate, push down the trackball until it clasps into the square holes of the metal
plate, and use screws to fix the grounding cable to the metal plate.
Figure 19.38-ZS3
4. Reinstall the User Interface assembly in reverse order of the removal steps
listed above and proceed to System Verification.
