ZS3 Service Manual Page 257 of 295

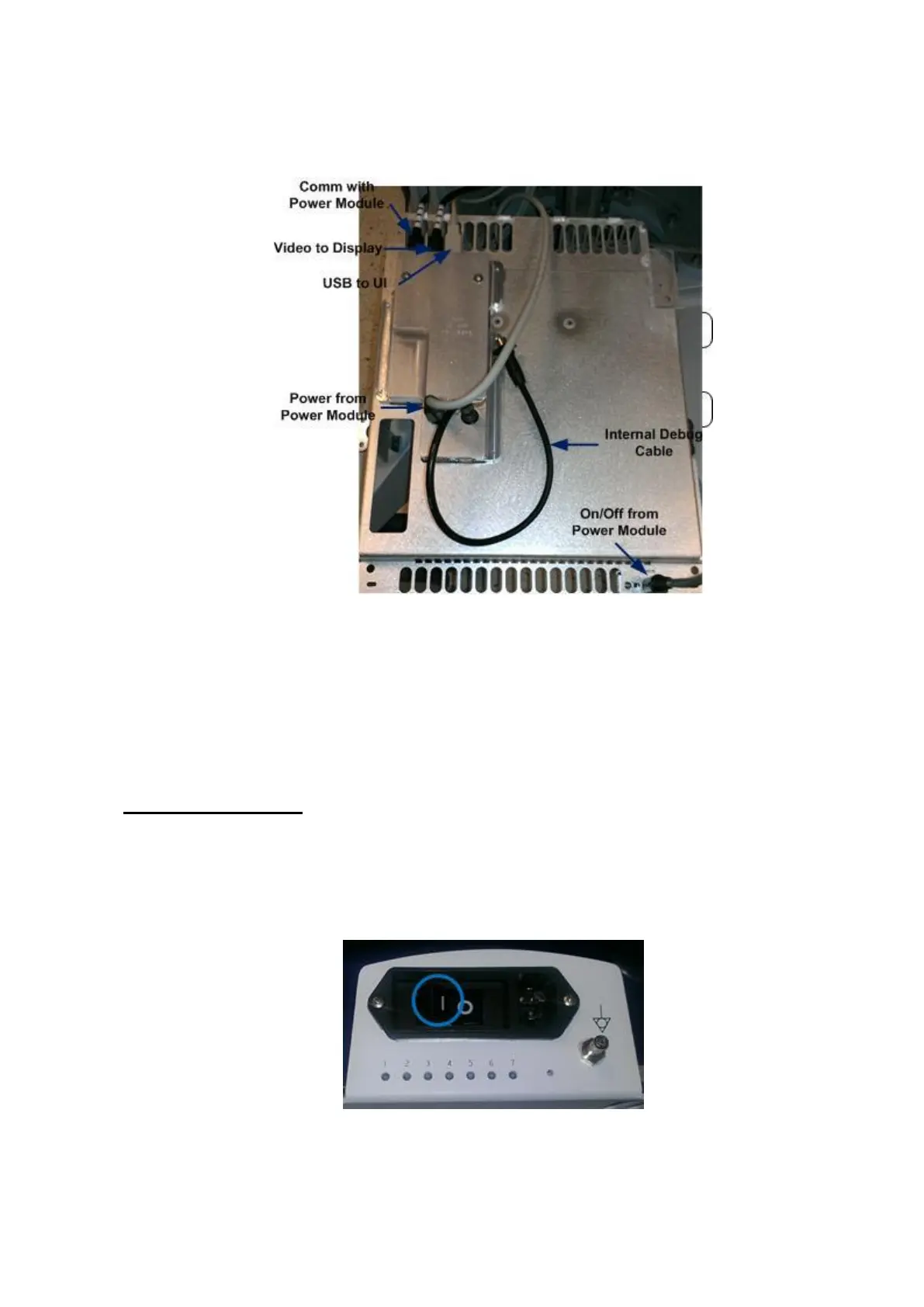

8. Disconnect all wires where they connect to the Dock Board. There are five
wires in total. Take note of where each wire connects for reassembly
Figure 19.49-ZS3
9. The Dock Board may now be removed completely from the cart
10. Repeat all steps in reverse order to reassemble Dock Board. Reconnect all five
wires as they were (See figure above). Replace ZS3 Module and plastic
covering.
System Verification:
1. Reconnect the main AC power cord from the rear of the system or plug into the
wall source.
2. Place AC circuit breaker, located at the rear of the system, in the “1” (ON)
position.
Figure 19.50-ZS3
To Next Page
