Mindray Zonare ZS3 Service Manual

ZS3 Service Manual
Page 36 of 295

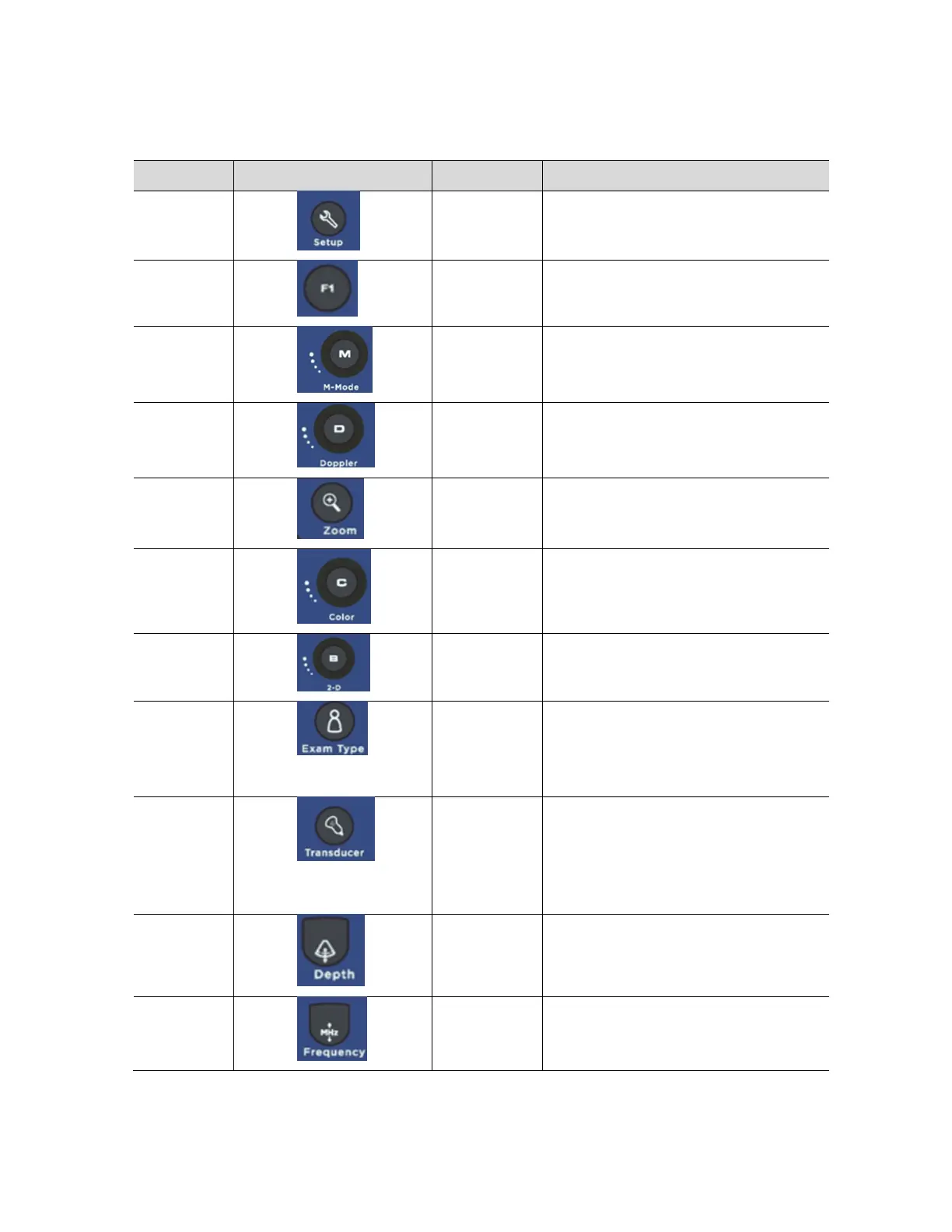

USER INTERFACE FUNCTIONS
Note: Not all controls are available on the SP user interface. Features and
functions not directly accessible via hard key are still available however via
menus.
No
Sign
key
Description
1.
Setup
Used to bring up the SYSTEM
SETUP configuration menu.
2.
F1 – F8
Function keys, user configurable
in System Setup menu.
3.
M-mode
Press to enter M-mode; Rotate
to adjust gain.
4.
D-mode
Press to enter Doppler mode;
Rotate to adjust gain.
5.
ZOOM
Initiates the variable image
magnification process.
6.
C-mode
Press to enter Color Doppler
mode; Rotate to adjust gain.
7.
B-mode
Press to enter B-mode (2-D);
Rotate to adjust gain.
8.
Exam
Type
Brings up Exam Type/Presets
configuration menu, and six
user Preset setting to OLED
display windows.
9.
Transduce
r (MTP)
Used to bring the available
transducers to the OLED display
windows, for selection of a
desired transducer from the 3-
Port MTP panel and 1 CW port.
10.
Depth
Adjusts (Up/Down) the imaging
depth of the display.
11.
Frequency
Enables increasing/decreasing
transmit frequency.
